Product Description

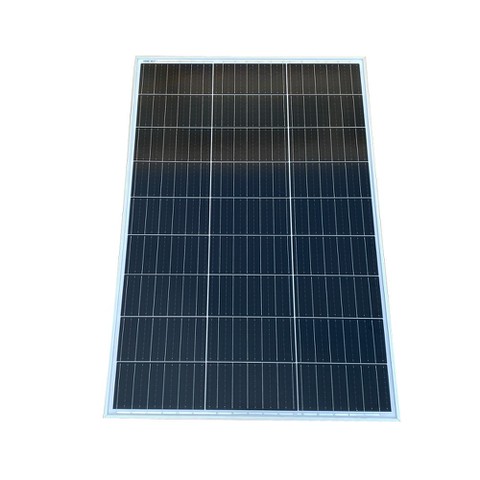

Monocrystalline silicon solar panels are an efficient solar energy conversion device. It is made of monocrystalline silicon material, which has the characteristics of high quality, high efficiency, long lifespan, and reliability. This type of solar panel can be widely used in fields such as solar cell power plants, solar lighting fixtures, etc., making important contributions to the utilization and development of environmentally friendly energy.
Struchure of solar panel
1, Tempered glass
2, EVA
3, Solar cell
4, Junction box
5, Aluminum alloy frame
6, Backsheet
7, Silicon
Production process of solar panel components
1, Welding, 2, stacking,
3, lamination, 4, EL testing,
5, framing, 6, installation of junction boxes,
7, cleaning, 8, power testing,
9, finished product inspection, 10, packaging.
|
Electrical Characteristics(stc*) |
|
|
Model No. |
SF120M10 |
|
Maximum Power at STC(Pmax) |
120Wp |
|
Maximum Power Voltage(Vmp) |
18.4V |
|
Maximum Power Current(Imp) |
6.52A |
|
Open Circuit Voltage(Voc) |
22.1V |
|
Short Circuit Current(Isc) |
7.04A |
|
Maximum System Voltage(V) |
1000V DC(IEC) |
|
Maximum Series Fuse Rating(A) |
15A |
|
Power Tolerance(%) |
0～+3% |
|
NOCT |
45±2℃ |
|
Pmax Temperature Coefficient |
-0.46%/℃ |
|
Voc Temperature Coefficient |
-0.346%/℃ |
|
Isc Temperature Coefficient |
0.065%/℃ |
|
Operating Temperature |
-40~+85℃ |
|
Mechanical Characteristics |
|
|
Solar Cells |
32(4×8)Mono-crystalline silicon Solar Cells 182×91mm |
|
Front Glass |
3.2mm(0.13in) high-transmission tempered glass |
|
Encapsulate |
EVA(Ethylene-Vinyl Acetate) |
|
Frame |
Double-layer anodized aluminium alloy |
|
Junction Box |
IP67 rated, with serviceable bypass diodes |
|
Cables |
UV resistant solar cable (Optional) |
|
Connectors |
MC4 compatible connectors (Optional) |
|
Dimensions(L×W×H) |
780×766×25mm |
|
Weight |
8.8Kg |
|
Max.Load |
Wind Load:2400Pa/Snow Load:5400Pa |
Our Advantage
To provide you with the best products and services.
Professional experience of R&D, management team
The raw materials of the products are selected from domestic first-line manufacturers
We not only produce photovoltaic modules, but also have a photovoltaic module junction box production workshop
100% of the products are fully inspected twice by EL, and defective products are destroyed in time to ensure the quality of the ex-factory
products
Sufu has been offering the world reliable and renewable products which are internationally certified with TUV,CE,IEC and ISO9001 etc.

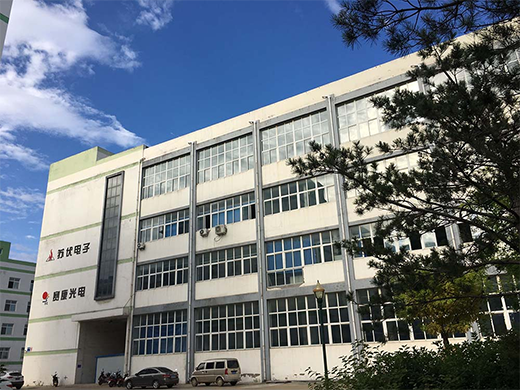

Sufu Electronics focuses on creating smarter energy together with installers,distributors, public utilities and project developers around the world. The product applies to a wide range of clients including Australia,India,Japan,Korea,South America,Middle-ease, Southeast Asia,Africa and other countries. Sufu is creating miracles at industrial upgrading,technological innovation,high quality and environmental protection.
Sufu Electronics is trying to make solar power what is a inexhaustible,ubiquitous,green renewable energy into thousands of homes and become eternal power for sustainable.
