Product Description
182mm 120 piece string Monocrystalline silicon solar panel
25 years 80% output linear power guarantee
High transmittance
Low iron coated glass
Adopting mass production for high efficiency
Single crystal battery cells
Excellent weak light
Power generation performance
High quality junction box
And connectors
100% inspection
Ensure system operation
Specification
| Model | SF440M10 | SF445M10 | SF450M10 | SF455M10 | SF460M10 | |||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Max power- Pm ax(W ) | 440 | 333 | 445 | 337 | 450 | 341 | 455 | 345 | 460 | 349 |
| Open voltage- Voc(V) | 40.98 | 38.61 | 41.20 | 38.81 | 41.41 | 39.03 | 41.63 | 39.25 | 41.84 | 39.47 |
| Short current- Isc(A) | 13.66 | 10.99 | 13.74 | 11.04 | 13.82 | 11.09 | 13.90 | 11.14 | 13.99 | 11.19 |
| Work voltage-Vm p(V) | 34.44 | 32.09 | 34.62 | 32.32 | 34.8 | 32.54 | 34.98 | 32.77 | 35.16 | 32.99 |
| Work current- Im p(A) | 12.78 | 10.38 | 12.85 | 10.43 | 12.93 | 10.48 | 13.01 | 10.53 | 13.08 | 10.58 |
| Efficiency-ηm (% ) | 20.3 | / | 20.4 | / | 20.6 | / | 20.8 | / | 21.1 | / |
| Power tolerance(W ) | (0,+4.99W) | |||||||||
| Maximum system voltage(V) | 1500Vdc (IEC / UL) | |||||||||
| Maximum rated fusing current(A) | 25A | |||||||||
STC: Light intensity 1000W/m, component temperature 25 ℃, atmospheric quality 1.5
NOCT: Light intensity 800W/m, ambient temperature 20 ℃, atmospheric quality 1.5, wind speed 1m/s
FAQ
Q: What is a monocrystalline silicon solar panel?
A: A monocrystalline silicon solar panel is an assembly of several monocrystalline silicon solar cells assembled on a single panel in a certain way.
Q: What are the advantages of monocrystalline silicon solar panels?
A: Monocrystalline silicon solar panels have high conversion rates and long service life.
Q: In which fields are monocrystalline silicon solar panels applied?
A: Monocrystalline silicon solar panels can be used as power sources for lighting fixtures, and can be applied in household roofs, photovoltaic power stations, and other applications.

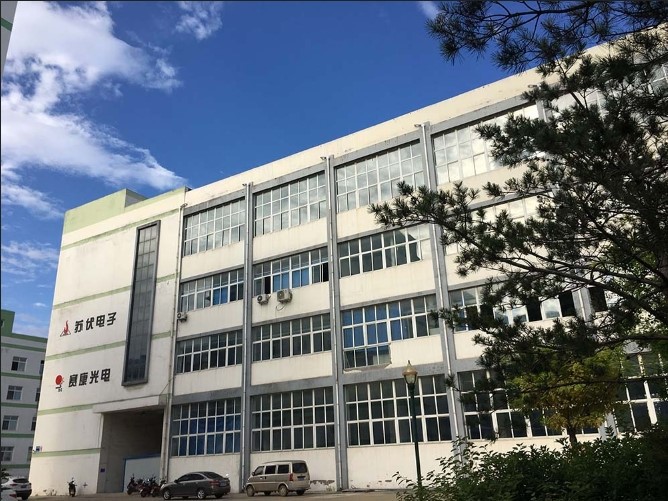

Our Company
Sufu Electronics focuses on creating smarter energy together with installers, distributors, public utilities and project developers around the world. The product applies to a wide range of clients including Australia, India, Japan, Korea, South America, Middle-ease, Southeast Asia, Africa and other countries. Sufu is creating miracles at industrial upgrading, technological innovation, high quality and environmental protection. Sufu Electronics is trying to make solar power what is a inexhaustible, ubiquitous, green renewable energy into thousands of homes and become eternal power for sustainable.
