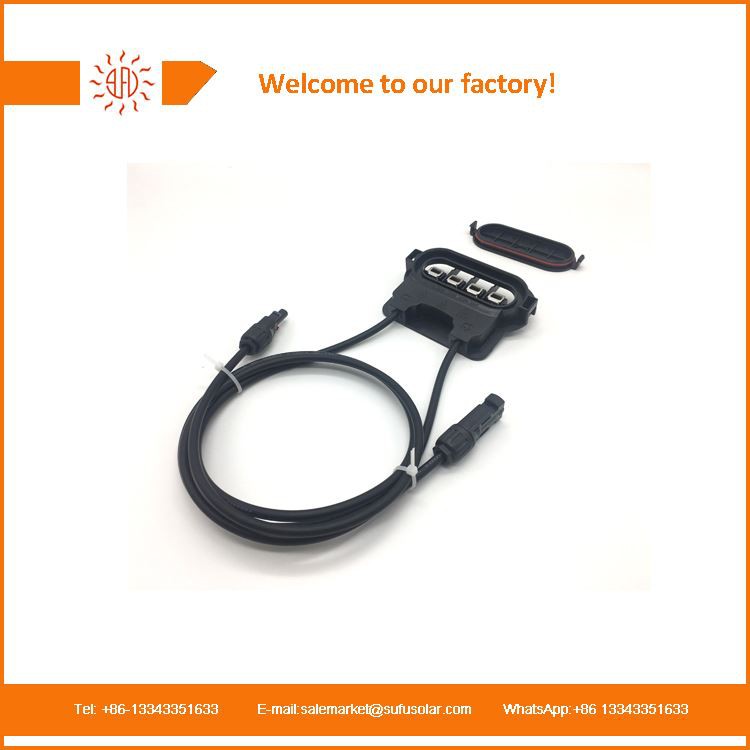

Product Description
1. Crimping type
2. Schottky 15SQ045 diode
3. PPO material box
4. 4SQMM 900MM(standard)
5. Half filled with glue
6. 10years factory warrenty, 25 years service life
7. TUV certificate, IP65
8. Solar plant used
Parameter
| Specification | No. of terminal | No. of Diode | Diode type | Distance between the terminals | Circuit |
| PV-SC1503 | 4 | 3 | 20SQ045 | 19.5mm |  |
|
Certification |
TUV |
|
Certificate No |
B 101149 0001 Rev.00 |
|
Standard |
EN62790:2015 IEC62790(ed.1) |
|
Rated Voltage |
1500VDC |
|
Max.working voltage |
100VDC |
|
Rated Current |
12A |
|
Pollution Degree |
0 |
|
Protection Class |
Class Ⅱ |
|
Protection Degree |
IP67 |
|
Flame Class |
UL94-V0 |
|
Temperature Range |
-40℃~+85℃ |
|
Connecting Cable |
1×4m㎡ |
|
Waterproofing structure |
Potting sealing |
|
Width Of Copper Ribbon |
Up to 8mm |
|
Connection Method |
Spring Clamping |
|
Insulation Material |
PPO |
|
Contact Material |
Copper alloy, Nickel plated |
|
Overall Dimension |
119×88.3X19.6 mm |
|
Bonding mode |
silica gel |
|
The bonding area |
2500m㎡ |
|
Connector |
PV-SC01 |

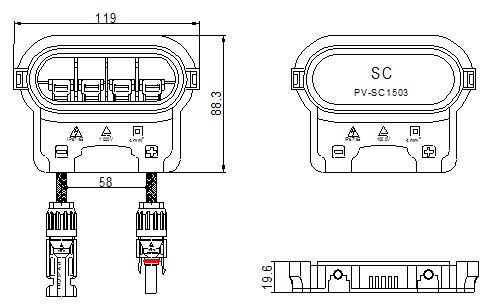

Diagram
Feature
CONNECTIONS BOX
Conventional independent edition and customized engineering edition.
The quality of the diode guarantees the safety of the operation of the module
IP67 protection level
Heat dissipation
Long useful life
