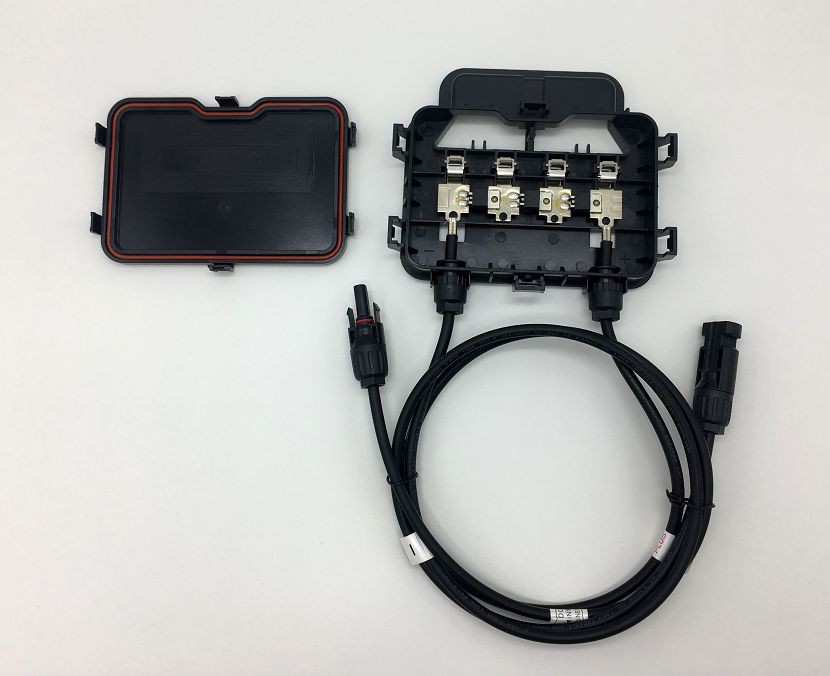

Product Description
1. Crimping type
2. Schottky 15SQ045 diode
3. PPO material box
4. 4SQMM 900MM(standard)
5. Half filled with glue
6. 10years factory warrenty, 25 years service life
7. TUV certificate, IP65
8. Solar plant used
Parameter
| Specification | No. of terminal | No. of Diode | Diode type | Distance between the terminals | Circuit |
| PV-SC0902-43 | 4 | 3 | SDA2040 | 27.6mm |  |
|
Certification |
TUV |
|
Certificate No. |
R50279872 |
|
Standard |
EN 50548:2011+A1 |
|
Rated Voltage |
1000VDC |
|
Max.working voltage |
100VDC |
|
Rated Current |
11A |
|
Pollution Degree |
2 |
|
Protection Class |
Class Ⅱ |
|
Protection Degree |
IP65 |
|
Flame Class |
UL94-V0 |
|
Temperature Range |
-40℃~+85℃ |
|
Connecting Cable |
1×4m㎡ |
|
Waterproofing structure |
O-ring Seal |
|
Width Of Copper Ribbon |
6mm Up to 6mm |
|
Connection Method |
Spring Clamping |
|
Insulation Material |
PPO |
|
Contact Material |
Copper alloy, Nickel plated |
|
Overall Dimension |
(94)×94×30.5 mm |
|
Bonding mode |
silica gel |
|
The bonding area |
5400m㎡ |
|
Connector |
PV-SC01 |

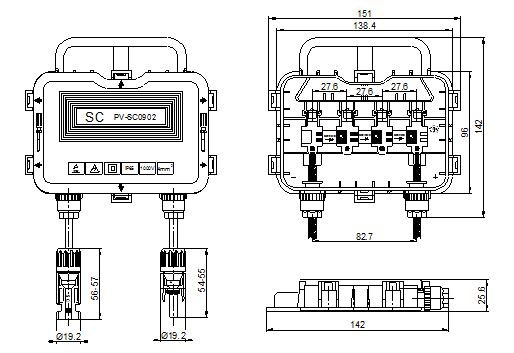

Diagram
Feature
Power loss less than 0.3Watt
Simple, quick and safe installation
IP65: the innovative sealing design, dust-proof and water-proof
Strong current and high voltage load capacity
Excellent material which meets UL94-V0 fire safety standard for long-term outdoor application wich its outstanding anti-ageing, water-proof and UV-resistance propeties.
Certificate
Why choose us?
1. We have our own factory with professional for solar panel and system over 10 years.
2. We have a strong R&D team.
3. Offering OEM service for your order.
4. Reply within 12 hours.
5. Offering competitive price, good after-sales service.
FAQ
Q: Why you choose SUFU?
A: Because we are professional manufacturer of solar accessories for more than 11 years. We have excellent raw suppliers and strong engineering team.
Q: What is the deliver time?
A: Within 15 days after order confirmed by prepayment received.
Q: What is your warranty terms?
A: We offer different warranty time for different components, please contact us for details.
Q: How about your quality control system?
A: Quality is priority. We always attach great importance to quality control from beginning to the end of the production. Every product will be full assembled and carefull tested before packing and shipping.
