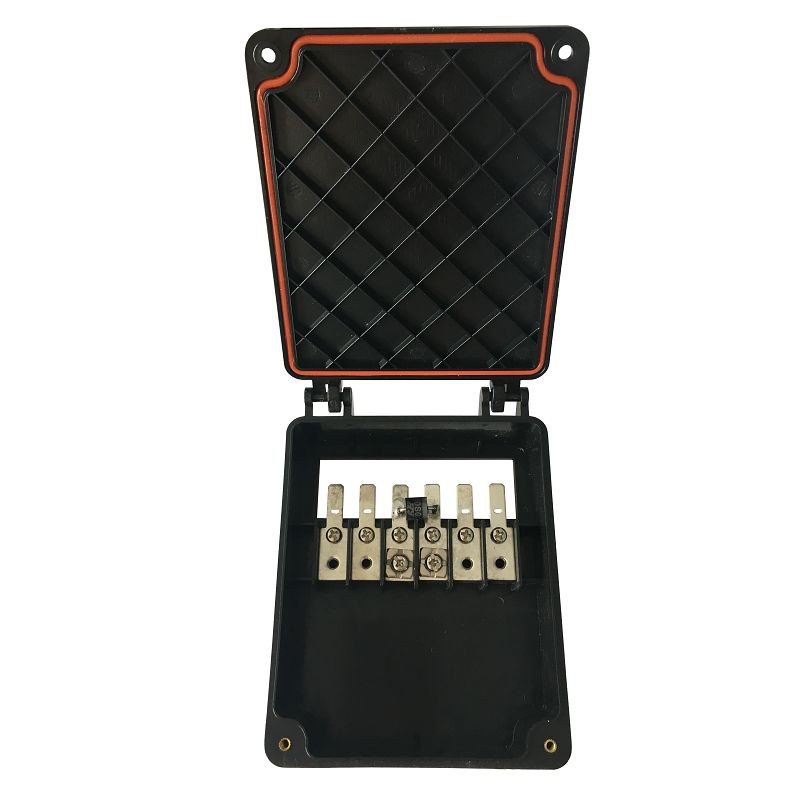

Product Description
1. With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover
2. To meet the using requirement under bad outdoor condition
3. The self-locking function makes the connection mode is more convenient and firm
4. Anti electric shock insulation protection science, has good security
5. Terminals installed firmly, and convergence with good weld-ability
Parameter
| Specification | No. of terminal | No. of Diode | Diode type | Distance between the terminals | Circuit |
| PV-SC1302-65 | 6 | 5 | 10SQ050 | 13mm |
|
| PV-SC1302-54 | 5 | 4 | 10SQ050 | 13mm |
|
| PV-SC1302-43 | 4 | 3 | 10SQ050 | 13mm |
|
| PV-SC1302-32 | 3 | 2 | 10SQ050 | 13mm |
|
|
Rated Voltage |
1000VDC |
|
Rated Current |
8.5A |
|
Protection Class |
Class Ⅱ |
|
Protection Degree |
IP65 |
|
Flame Class |
UL94-V0 |
|
Temperature Range |
-40℃~+85℃ |
|
Connecting Cable |
1×2.5-4mm2 or 2×1.5-4m㎡ |
|
Waterproofing structure |
O-ring Seal |
|
Width Of Copper Ribbon |
Up to 6.4mm |
|
Connection Method |
Soldering |
|
Insulation Material |
PPO |
|
Contact Material |
Copper alloy, tin plated |
|
Overall Dimension |
135(123)×103×38 mm |
|
Bonding mode |
silica gel |
|
The bonding area |
4800m㎡ |
|
Connector |
No |
Diagram
Installation
Certificate
FAQ
Q: Are you a manufacture or a trading company?
Our Company is a professional solar junction box manufacturer with 12 years production experience.
Q: Whether these products quality assured ?
Most of solar junction boxs are certificated. Also, we have strict QC, all products are 100% tested before delivery. Quality is assured.
Q: When I want customized products, how to do?
We have Equipped with professional equipment, technicians & skilled employees, OEM & customized service is welcome. Drawings / samples are required.
Q: Can you send a sample for us to test?
Of course.
Q: If I want to purchase, how to pay ?
Generally we do T/T in 30% deposit before production, 70% balance against copy of B/L . Also payment terms are negotiable depending on customer's request.
Q: After I pay, what about the lead time and shipping method?
Goods can be delivered by air, by express or by sea; International Express as FEDEX, UPS, DHL, TNT; You can choose the best way as you wish. As for the Lead time, 10~20 days.
