Product Description
1. Crimping type
2. SMD diode HY SDA2040
3. PPO material box
4. 4SQMM 300MM(standard)
5. Potting glue type
6. 10years factory warrenty, 25 years service life
7. TUV certificate, IP67
8. BIPV, Double glass solar panel used.
Parameter
| Specification | No. of terminal | No. of Diode | Diode type | Distance between the terminals | Circuit |
| PV-SC1701 | 6 | 3 | SPA2040 | 20mm |  |
|
Standard |
EN 50548:2011+A1 |
|
Rated Voltage |
1500VDC |
|
Max.working voltage |
100VDC |
|
Rated Current |
12A |
|
Pollution Degree |
0 |
|
Protection Class |
Class Ⅱ |
|
Protection Degree |
IP67 |
|
Flame Class |
UL94-V0 |
|
Temperature Range |
-40℃~+85℃ |
|
Connecting Cable |
1×4m㎡ |
|
Waterproofing structure |
Potting sealing |
|
Width Of Copper Ribbon |
Up to 8mm |
|
Connection Method |
Soldering |
|
Insulation Material |
PPO |
|
Contact Material |
Copper alloy, Nickel plated |
|
Overall Dimension |
52 X 52X15 mm X 3 |
|
Bonding mode |
silica gel |
|
The bonding area |
1700m㎡ X 3 |
|
Connector |
PV-SC01 |

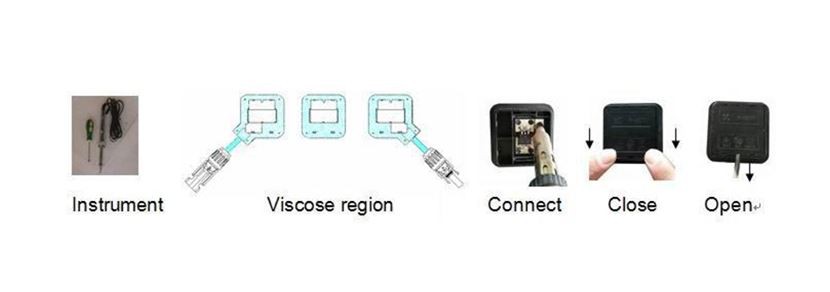

Diagram
Feature
1701 junction box houses electrical interconnection within the string of the module. It also houses bypass diode(s) (reverse biased) which protects the module from generating hotspot in case of shadow.A typical split type JB consists of three separate boxes collecting current from separate strings.This enables the bypass to be less active as compared to traditional modules. This could overall enhance the life of the bypass diode and further the solar module.
Certificate
FAQ
Q: What is your main product?
You can get any product of PV system from us.
We're manufacturer of solar panel, solar junction box, solar connector and portable power system.
Q: How long is lead time of orders?
The scheme design speed is fast: we can provide the overall design scheme within 3 workdays after confirming the customer's requirements.
Fast production delivery: we can delivery products within 20 workdays (not including time of transportation) after the client confirming the plan and we receiving the advance payment.
Q: Can you provide solution?
Yes, Communicate fully with customers, understand customer requirements, design solutions for customers, provide drawings for customers to confirm.
