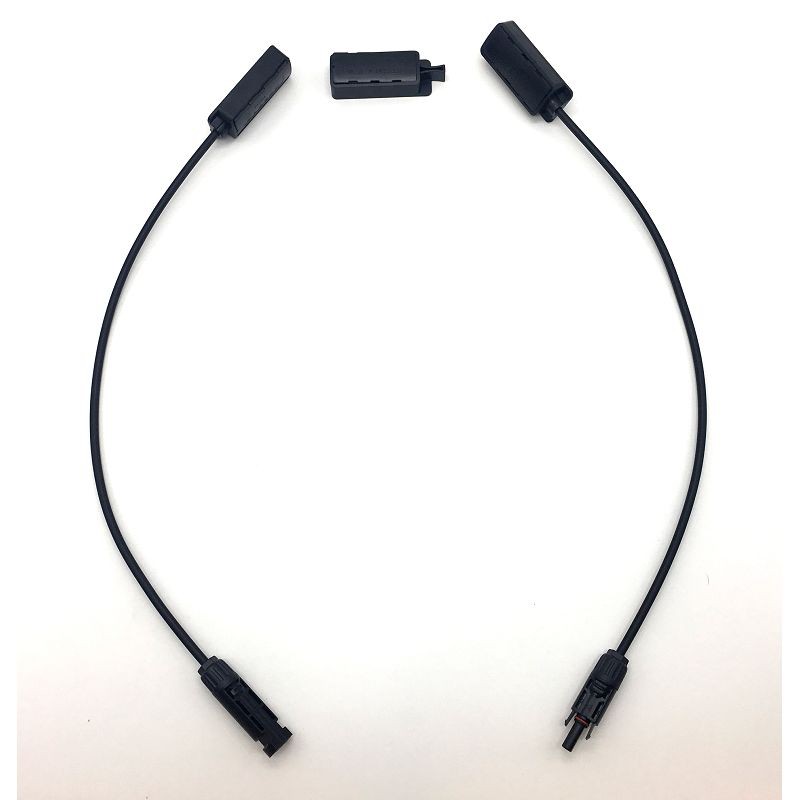

Product Description
PV - JB03 PV junction box adopts thin sheet metal terminals soldering method, has better heat resistance, stability, excellent high and low temperature resistance, anti-aging and ultraviolet resistant function. Can satisfy the requirement of outdoor use for a long time under the condition of bad environment. Excellent waterproof, dust-proof effect, using glue sealing. Small appearance, ultra- thin design is concise and practical. Of wires and cables connected respectively welding and pressure welding way, safe and reliable electrical properties.
Parameter
| Diode model | Rated current | Rated voltage | Number |
| SR3045DY | 30A | 45V | 3 |
|
Rated Voltage |
1500VDC |
|
Rated Current |
18A |
|
Protection Class |
class A |
|
Protection Degree |
IP68 |
|
Temperature Range |
'-40℃~+85℃ |
|
contact resistance |
≤3mΩ |
|
Rated impulse voltage |
12000V |
|
Max. working voltage |
100V |
|
Connecting capacity |
12AWG/1x4m㎡ |
|
Copper strip size |
6.0~8.5mm(w)x0.2~0.4mm(h) |
Diagram

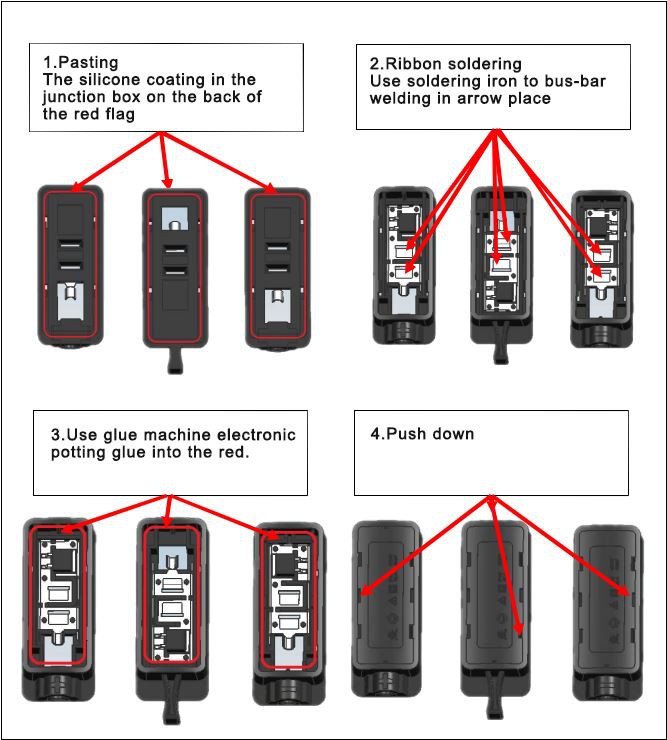

Installation
Feature
A. High temperature resistance, excellent low-temperature, fireproof, waterproof, anti-ultraviolet performance, meet the customer long-term under harsh environment )
B. Excellent sealing performance, waterproof, dust-proof rating to IP67
C. With the large
current, high voltage load capacity, can satisfy the use of the high PV module components requirements
Certificate
FAQ
1. May I take some samples to test before placing the order ?
A: Yes, but customers need to pay for the sample fees and express fees, and it will be returned when next order is confirmed.
2. How long can you offer the samples?
A: 1~5 days after the deposit payment is confirmed.
3. What's your payment terms for sample?
A: You can pay via T/T.
4. What's the price terms can you offer for us?
A: We can accept EXW, FOB, CIF and so on.
5. Do you have any certifications for your products?
A: We have ISO9001:2000, CE, certifications for all of our products.
