Product Description
With the capacity of age and UV-resistance
The PV-Junction box can work in the atrocious weather
The PV-Junction box is not only with the convenient installation of ribbon bands but also all connections are double strengthened connection;
The maximal working current will be changed when the box is fixed with different types of diode.
Standard: DIN V VDE 0126-5/05.08 UL1703

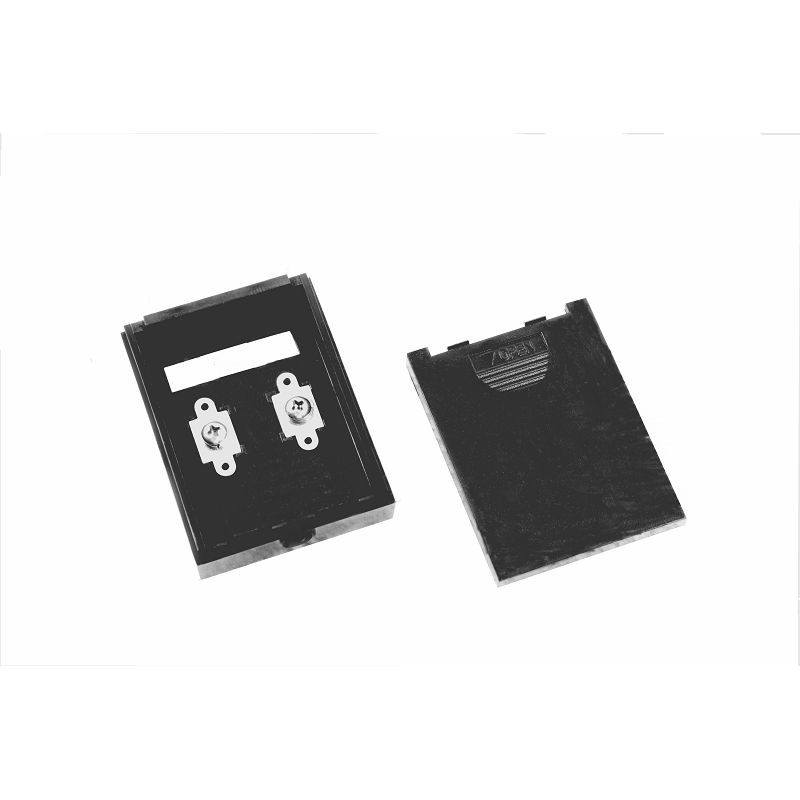

PV 011 junction box is small and easy to install, which is suitable for the low power modules
Parameter
| Specification | No. of terminal | No. of Diode | Diode type | Distance between the terminals | Circuit |
| PV-SC1202-20 | 2 | 0 | 22mm |  |
|
| PV-SC1202-21 | 2 | 1 | RL207 | 22mm |  |
|
Rated Voltage |
1000VDC |
|
Protection Class |
Class Ⅱ |
|
Protection Degree |
IP65 |
|
Flame Class |
UL94-V0 |
|
Temperature Range |
-40℃~+85℃ |
|
Connecting Cable |
2×0.3-0.75m㎡ |
|
Waterproofing structure |
Glue sealing |
|
Width Of Copper Ribbon |
Up to 6mm |
|
Connection Method |
Soldering |
|
Insulation Material |
PPO (or ABS/PC) |
|
Contact Material |
Copper alloy, tin plated |
|
Overall Dimension |
52×40×9.3mm |
|
Bonding mode |
silica gel |
|
The bonding area |
1100m㎡ |
|
Connector |
No |
Diagram
Packing & Delivery
Delivery Time:
1-10 days after confirming order, detail delivery date should be decided according to production season and order quantity.
Shipping:
1. Shipment port: TIANJIN
2. By Air or by Sea for batch goods, Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!

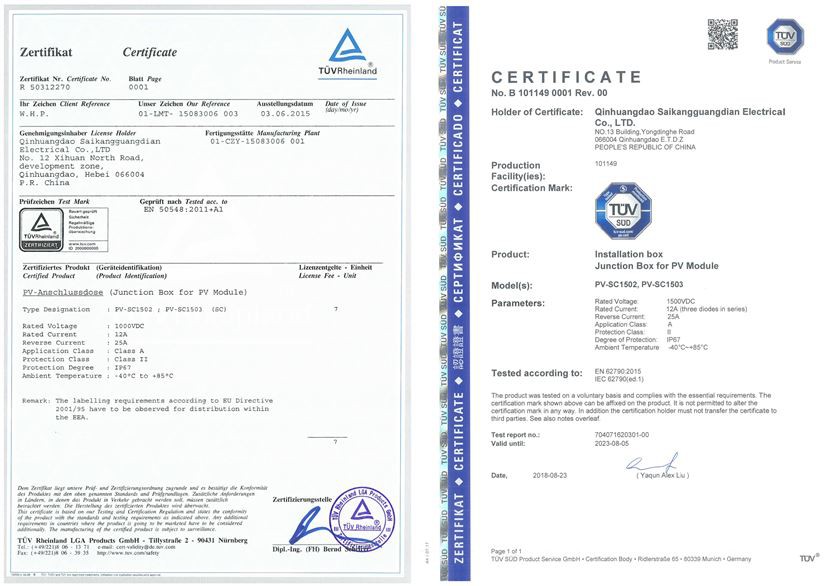

Certificate
FAQ
Q1: What's your Main products?
All raw material we selected the high quality. Our main products: solar connector, solar panels, PV system, PV junction box and other solar relative products.
Q2: How does your company do regarding Quality Control?
1) We choose high quality for all the raw material.
2) Professional & skilful workers in charge of handling the producing.
3) QC Department specially responsible for quality checking in each process.
Q3: Do you offer OEM Service?
We do OEM & ODM, Welcome your order.
If have other questions, Our R&D team will give you the professional suggestions.
Q4: What the delivery time?
Within 3 days for small order after receiving the payment, but sometimes delivery daye will be based on the order quantity.
Q5: Do you accept customized order?
Yes we do.
