Product Description
This junction box used for 200w to 300w solar panels, with bypass diode, to prevent reverse charging diode, made from environment material, high quality and competitive price.
Our factory major in solar junction box, with many types, please tell me your demand, i will help you to choose the right one.
Parameter
| Specification | No. of terminal | No. of Diode | Diode type | Distance between the terminals | Circuit |
| PV-SC1502-43 | 4 | 3 | SDA2040 | 20mm |
|
|
Certification |
TUV |
|
Standard |
EN 50548:2011+A1 |
|
Rated voltage |
100VDC |
|
Max.working voltage |
100VDC |
|
Rated Current |
12A |
|
Pollution Degree |
0 |
|
Protection Clasee |
Clasee Ⅱ |
|
Protection Degree |
IP67 |
|
Flame Class |
UL94-V0 |
|
Tempersture Range |
-41℃～+85℃ |
|
Connecting Cable |
1×4m㎡ |
|
Waterproofing structure |
Glue potting seal |
|
Width Of Copper Ribbon |
Up to 8mm |
|
Connection Method |
Soldering |
|
Insulation Material |
PPO |
|
Contact Material |
Copper alloy,tin plated |
|
Overall Dimension |
95.4×73×15mm |
|
Bonding mode |
Silica gel |
|
The bonding are |
2500m㎡ |
|
Connector |
PV-SC01 |

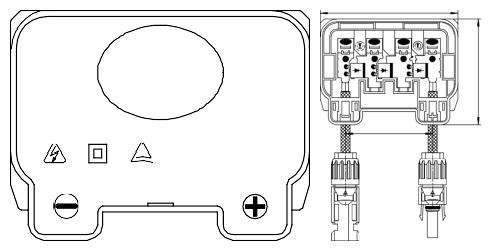

Diagram
Feature
1. A solar junction box is attached to the back of the solar panel with silicon adhesive
2. It wires the (usually ) 2 connectors together and is the output interface of the solar panel
3. With the use of a junction box , it becomes easy to connect the solar panel to array
4. With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover
5. To meet the using requirement under bad outdoor condition
6. The self-locking function makes the connection mode is more convenient and firm
7. Anti electric shock insulation protection science, has good security
8. Certification:TUV Safety Class:ClassⅡ Protection Degree:IP67

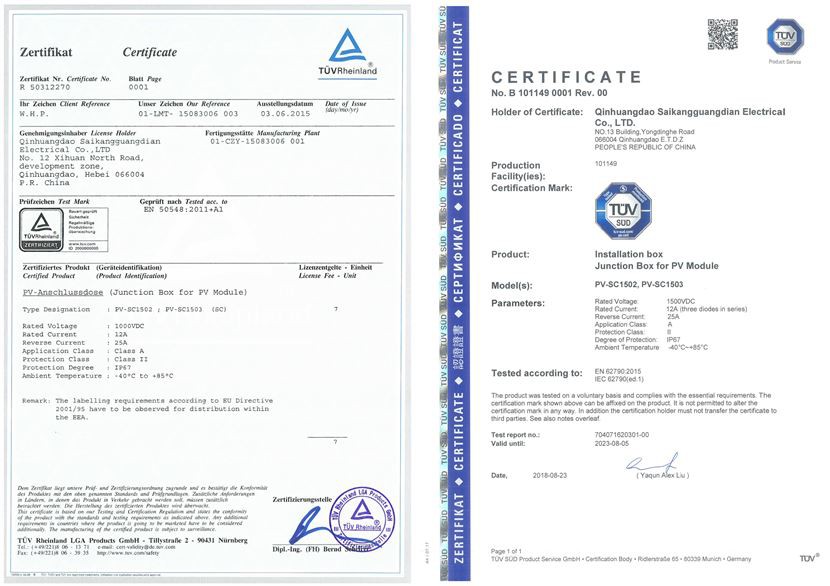

Certificate
