Product Description
The solar junction box can easily be installed on the solar panel.
Gives you full protection of the Cable Line.
It is made of high quality plastic, it will not crack or fade in Sunlight, durable for years use.
It is used to install solar panel and inverter connection, more convenient and safer.
The shell has strong aging resistance and ultraviolet resistance.
Meet the requirements of outdoor harsh environment.
The cable connection is connected by crimping.
The connection of tin plated copper ribbon is made of tin welding.
Specification
|
Standard |
EN 50548:2011+A1 |
|
Rated Voltage |
1500VDC |
|
Max.working voltage |
100VDC |
|
Rated Current |
12A |
|
Pollution Degree |
0 |
|
Protection Class |
Class Ⅱ |
|
Protection Degree |
IP67 |
|
Flame Class |
UL94-V0 |
|
Temperature Range |
-40℃~+85℃ |
|
Connecting Cable |
1×4mm2 |
|
Waterproofing structure |
Potting sealing |
|
Width Of Copper Ribbon |
Up to 8mm |
|
Connection Method |
Soldering |
|
Insulation Material |
PPO |
|
Contact Material |
Copper alloy, Nickel plated |
|

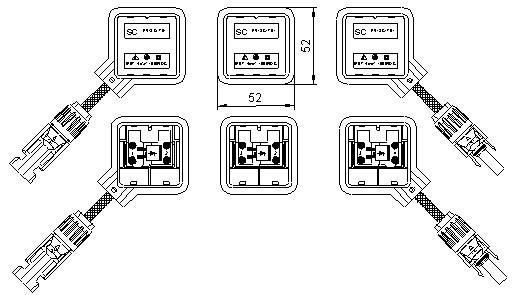

Overall Dimension |
52 X 52X15 mm X 3 |
|
Bonding mode |
silica gel |
|
The bonding area |
1700mm2 X 3 |
|
Connector |
PV-SC01 |
Why choose us?
- Our Solar junction box is manufactured of high quality Raw Material, Advanced Facilities, Fine Procedures.
- High Productivity
- 100% timely Delivery
- Leading Level R&D Department
- Experienced Marketing Team
- Professional Design Department
- Accept OEM & ODM service
- Excellent After-sales Service
FAQ
Q: How about your Quality Control System?
★ We choose high quality for all the raw material.
★ Professional & skillful workers in charge of handling the producing.
★ The QC department is responsible for the quality inspection of each process.
Q: Do you offer OEM Service?
A: We do OEM & ODM, Welcome your order.
If have other questions, Our R&D team will give you the professional suggestions.
Q: What the delivery time?
A: Within 5 days for small order after receiving the payment, but sometimes delivery date will be based on the order quantity.
Q: Do you accept customized order?
A: Yes, customized service is available.
If you had buy our solar panels, you may need this solar junction box ip67 1500v dc.
