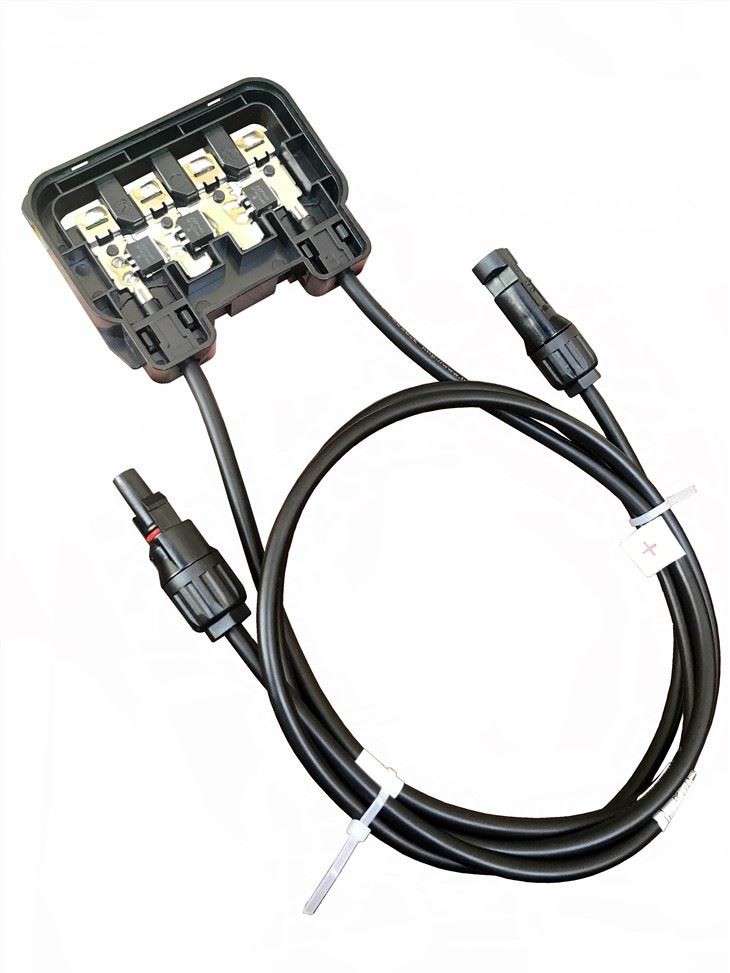

Details
▌Copper alloy,tin plated
▌With connector pv-sc01
▌The main structure
Diode type: PV3045
No. of diode: 3
No.of terminal: 4
Technical Data
|
Standard |
EN 62790:2015 |
|
Rated Voltage |
1000VDC |
|
Max.working voltage |
100VDC |
|
Rated Current |
12A |
|
Pollution Degree |
0 |
|
Protection Class |
Class Ⅱ |
|
Protection Degree |
IP67 |
|
Flame Class |
UL94-V0 |
|
Temperature Range |
-40℃~+85℃ |
|
Connecting Cable |
1×4mm2 |
|
Waterproofing structure |
Potting sealing |
|
Width Of Copper Ribbon |
Up to 8mm |
|
Connection Method |
Soldering |
|
Insulation Material |
PPO |
|
Contact Material |
Copper, Tin-plated |
|
Overall Dimension |
95.4×73X15 mm |
|
Bonding mode |
silica gel |
|
The bonding area |
2500mm2 |
|
Connector |
PV-SC01 |
Back cover
- Solar junction box ip67 waterproof junction box has Waterproof function as rubber ring.
- Antiskid function of pattern.
- The utility model with logo and model are manufactured by integral moulding of plastics.
- PPO with TUV.
Our Service
- Installation, verify the details of environmental conditions
- PV modules selection guide service.
- Comprehensive technical training and support.
- Installation and acceptance of technical guidance service.
- Trouble diagnosis, trouble clearing technical service.
- Install PV modules, problem solving, operation,maintenance and other training services.
- Provide a variety of specific spare parts as requested.
- To better ensure the safety of our solar junction box ip67 waterproof junction box, professional, environmentally friendly, convenient and efficient packaging services will be provided.
