Product Description
|
Product Name |

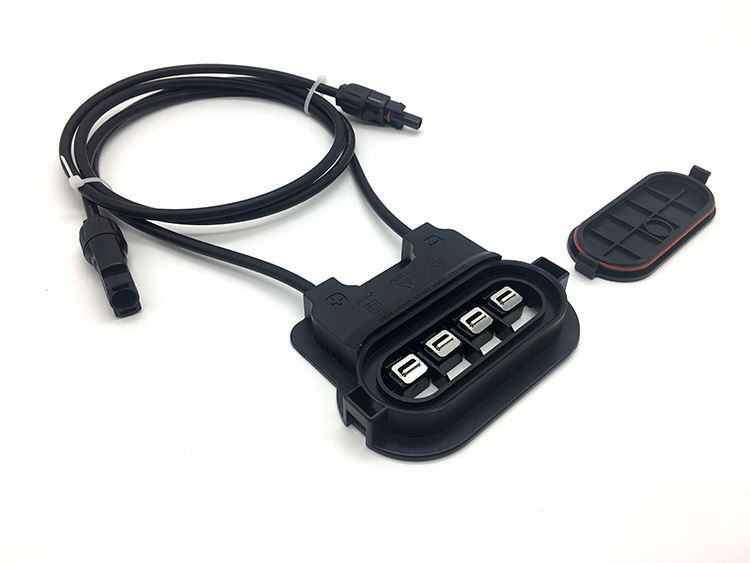

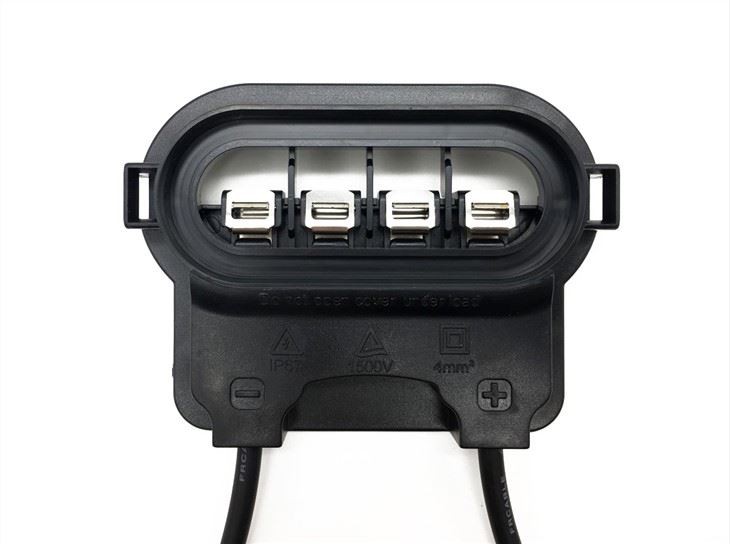

Solar junction box 4 terminal |
|
Certificate |
TUV |
|
Standard |
EN62790:2015 IEC62790(ed.1) |
|
Rated Voltage |
1500VDC |
|
Max.working voltage |
100VDC |
|
Rated Current |
12A |
|
Pollution Degree |
0 |
|
Protection Class |
Class Ⅱ |
|
Protection Degree |
IP67 |
|
Flame Class |
UL94-V0 |
|
Temperature Range |
-40℃~+85℃ |
|
Connecting Cable |
1×4mm2 |
|
Waterproofing structure |
Potting sealing |
|
Width Of Copper Ribbon |
Up to 8mm |
|
Connection Method |
Spring Clamping |
|
Insulation Material |
PPO |
|
Contact Material |
Copper alloy, Nickel plated |
|
Overall Dimension |
119×88.3X19.6 mm |
|
Bonding mode |
silica gel |
|
The bonding area |
2500mm2 |
|
Connector |
PV-SC01 |
Our Advantage
- Quickly delivery within 15 working-days.
- You can get professional advice from us- wholesalers, retailers and brands owners- from expert perspective.
- Sufu solar is a high-tech enterprise with CE, ROHS, ISO9001, ISO14001 certification.
- We know-how in this area enables us to offer different designs of solar modules through flexible production.
- OEM serice: Flexible, portable, rigid solar panels customized available.
- Warranty: We supply 1 years' warranty.
If you are intersted in our Solar junction box 4 terminal, please feel free to contact us!
