Product Description

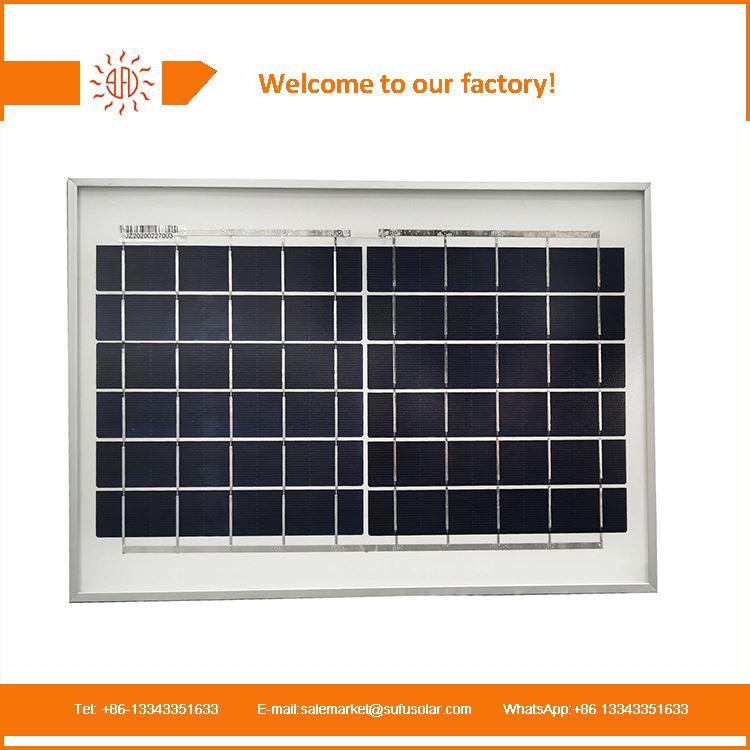

8w polycrystalline silicon solar module
The peak power of this component is 8 watts and the working voltage is 6v. Size 250*350*17mm
Suitable for low-voltage applications such as lamps. Designed for charging applications such as 25w-40w lamps.
These components are precisely manufactured, equipped with anodized universal aluminum alloy frame and anti-hail safety glass.
There is a pressing piece inside the junction box to hold down the wires, which can prevent the wires you installed from falling off. 12 polycrystalline cells are connected in series, which is very suitable for charging batteries below 6V.
Quality
In the production process, our company will use cell sorting equipment, EL image tester, component power tester, ground resistance tester, withstand voltage tester and other testing equipment to ensure the quality and safety of each step
Parameter
| Electrical Characteristics(stc*) | |
|
Model No.(SFP) |
8W |
|
Maximum Power at STC(Pmax) |
8W |
|
Maximum Power Voltage(Vmp) |
6 |
|
Maximum Power Current(Imp) |
1.33 |
|
Open Circuit Voltage(Voc) |
7.42 |
|
Short Circuit Current(Isc) |
5.65 |
|
Maximum System Voltage(V) |
1000V DC(IEC) |
|
Maximum Series Fuse Rating(A) |
15A |
|
Power Tolerance(%) |
0～+3% |
|
NOCT |
45±2℃ |
|
Pmax Temperature Coefficient |
-0.45%/℃ |
|
Voc Temperature Coefficient |
-0.336%/℃ |
|
Isc Temperature Coefficient |
0.064%/℃ |
|
Operating Temperature |
-40~+85℃ |
| *STC(Standard Test Condition):Irradiance 1000w/m2,module temperature 25℃,AM1.5 | |
| Best in Class AAA solar simulator(IEC 60904-9)is used,with power measurement uncertainty within ±3% | |
| Mechanical Characteristics | |
|
Solar Cells |
12(2×6)Poly-crystalline silicon Solar Cells |
|
Front Glass |
3.2mm(0.13in) high-transmission tempered glass |
|
Encapsulate |
EVA(Ethylene-Vinyl Acetate) |
|
Frame |
Double-layer anodized aluminium alloy |
|
Junction Box |
IP65 rated |
|
Dimensions(L×W×H) |
250*350*17mm |
|
Weight |
0.97Kg |
Application
Solar panel applications include various residential uses such as solar lighting, heating and ventilation systems. Many small appliances utilize solar energy for operation, like calculators, scales, toys and more. Agriculture and horticulture also employ solar energy for the operation of different aids like water pumps and crop drying machines. Solar energy also has various industrial applications, ranging from powering remote locations to powering transportation signals, lighthouses, offshore navigation systems and many more.
Packaging
Due to the small size of the solar panel, the specific packaging method is mainly negotiated with the customer
Why choose us?
1. Professional production
2. High quality
3. Price strength
4. Professional testing equipment
5. Factory direct sales
6. Good service
Parameter
|
ELECTRICAL CHARACTERISTICS(STC*) |
|
|
Model No.(SFP) |
8W |
|
Maximum Power at STC(Pmax) |
8W |
|
Maximum Power Voltage(Vmp) |
6 |
|
Maximum Power Current(Imp) |
1.33 |
|
Open Circuit Voltage(Voc) |
7.42 |
|
Short Circuit Current(Isc) |
5.65 |
|
Maximum System Voltage(V) |
1000V DC(IEC) |
|
Maximum Series Fuse Rating(A) |
15A |
|
Power Tolerance(%) |
0～+3% |
|
NOCT |
45±2℃ |
|
Pmax Temperature Coefficient |
-0.46%/℃ |
|
Voc Temperature Coefficient |
-0.346%/℃ |
|
Isc Temperature Coefficient |
0.065%/℃ |
|
Operating Temperature |
-40~+85℃ |
|
*STC(Standard Test Condition):Irradiance 1000w/m2,module temperature 25℃,AM1.5 |
|
|
Best in Class AAA solar simulator(IEC 60904-9)is used,with power measurement uncertainty within ±3% |
|
