Product Description

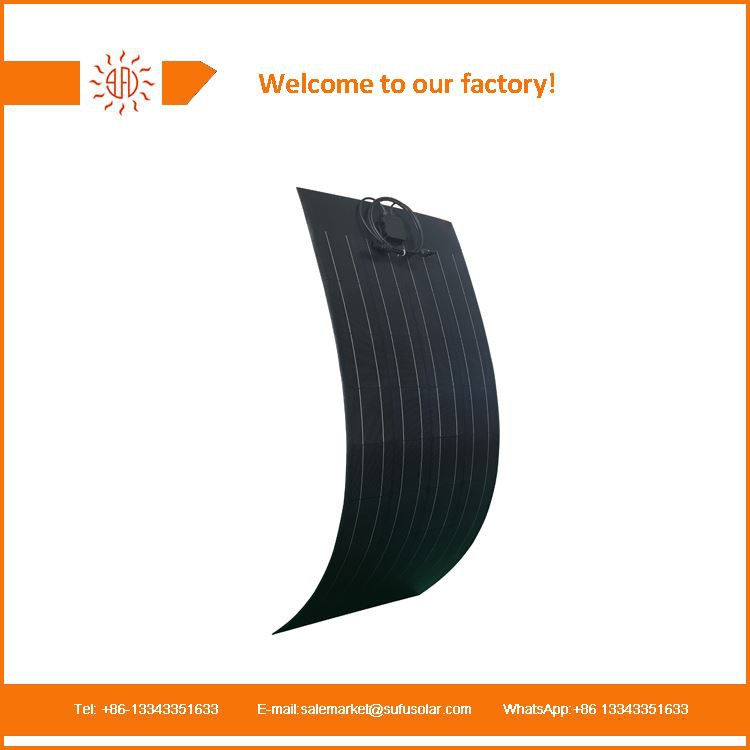

SFM100-Watt mono-crystalline Flex panels utilize advanced technology back contact mono-crystalline cells laminated into a flexible plastic sheet. The result is a panel far more rugged than the traditional glass and aluminum modules with the twice the efficiency (approximately 20%) of flexible thin film panels. The plastic back sheet can be curved up to a 15 arc and mounted on RVs, Boats, Cabins, etc. The ultra-thin design also allows for easy storage and/or transport.
Advanced technology back contact cells allow for flexibility and increased wattage per square feet
Unique frame-less design includes 4 metal reinforced mounting holes for easy installation
Rigorous quality control to meet the highest international standards
High transmittance, flexible lamination material is less prone to cracking than traditional glass
Outstanding electrical performance under high temperature and weak light environments
Positive and negative leads equipped with MC4 -comparable connectors
2 bypass diodes minimizes performance drop due to partial shade
Parameter
| Electrical Characteristics(stc*) | |||||
|
Model No.(SFP) |
90W |
95W |
100W |
105W |
110W |
|
Maximum Power at STC(Pmax) |
90W |
95W |
100W |
105W |
110W |
|
Maximum Power Voltage(Vmp) |
18.04V |
18.16V |
18.29V |
18.43V |
18.55V |
|
Maximum Power Current(Imp) |
4.99A |
5.24A |
5.47A |
5.70A |
5.93A |
|
Open Circult Voltage(Voc) |
21.64V |
21.79V |
21.94V |
22.11V |
22.26V |
|
Short Circuit Current(Isc) |
5.44A |
5.70A |
5.96A |
6.21A |
6.46A |
|
Maximum System Voltage(V) |
500V DC(IEC) | ||||
|
Maximum Series Fuse Rating(A) |
12A | ||||
|
Power Tolerance(%) |
0～+3% | ||||
|
NOCT |
45±2℃ | ||||
|
Pmax Temperature Coefficient |
-0.46%/℃ | ||||
|
Voc Temperature Coefficient |
-0.346%/℃ | ||||
|
Isc Temperature Coefficient |
0.065%/℃ | ||||
|
Operating Temperature |
-40~+85℃ | ||||
| *STC(Standard Test Condition):Irradiance 1000w/㎡, module temperature 25℃, AM1.5 | |||||
| Best in Class AAA solar simulator(IEC 60904-9)is used, with power measurement uncertainty within ±3% | |||||

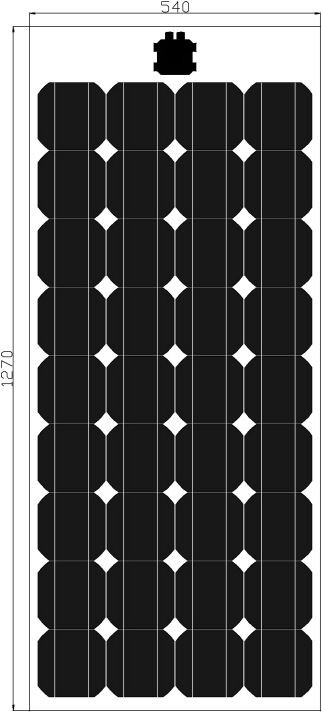

Engineering Drawings (mm)
| Mechanical Characteristics | |
|
Solar Cells |
36(4*9) Mono Solar Cells 125*125mm |
|
Encapsulant |
PET/ETFE |
|
Encapsulant |
EVA(Ethylene-Vinyl Acetate) |
|
Encapsulant |
Panel(black,white)/FR-4 ,Epoxy Glass Fiber |
|
Junction Box |
IP67 rated, with serviceable bypass diodes |
|
Cables |
UV resistant solar cable 4m㎡ (Optional) |
|
Connectors |
MC4 connectors (Optional) |
|
Dimensions(L×W×H) |
1270*540*21mm("H"include solar junction box 18mm) |
|
Weight |
2Kg |
|
Max.Load |
Wind Load:1200Pa/Snow Load:2700Pa |
| Packing Configuration | |
|
Packing Quantity |
80pcs/carton |
|
Carton Size |
1300*1000*680 |
|
Quantity/pallet |
240pcs/pallet |
|
Loading Capacity |
1920pcs/20ft |
Feature
Solar Cell
> High Efficiency sunpower cells
> Appearance Consistency
> Strongest solar cells for solar panels in the world
Semi flexible
Normal silicon cells are easy to be damaged if the panels are bend.
Sunpower cells are imported from U.S, as the strongest cells in the world, it can be bend without any damage.
Application
What are flexible solar panels, and how do they work?
In contrast to conventional (flat) solar panels, flexible solar panel technology enables solar power to be generated by wafer-thin, light, and bendable panels that you can carry with you on the go. In fact, their portability is their primary selling point.
Due to their low cost and easy portability, they are ideal for:
Camping trips, as power banks on your tent. They can also be safely rolled and stored when not in use. (These are also called camping solar panels.)
Long-distance travel in an RV. Of course, you could also carry a noisy generator for your power needs, or simply enjoy a serene drive with a flexible solar panel installed on your RV!
For boating/fishing/yachting trips. Again, ditch the generator, and let the serenity of your noise-free environment lure the fish. (These are also called solar panels for boats, or "flexible solar panels marine".)
Daily power backup. Do you find yourself constantly on the road, perhaps off the grid, panicking about your phone losing charge? Instead, you can slap on a flexible solar panel on top of your vehicle and allow it to serve as your sleek, eco-friendly power-bank. other countries.
Certificate
Why choose us?
1. We have our own factory with professional for solar panel and system over 10 years.
2. We have a strong R&D team.
3. Offering OEM service for your order.
4. Reply within 12 hours.
5. Offering competitive price, good after-sales service.
FAQ
Q: Why you choose SUFU?
A: Because we are professional manufacturer of solar accessories for more than 11 years. We have excellent raw suppliers and strong engineering team.
Q: What is the deliver time?
A: Within 15 days after order confirmed by prepayment received.
Q: What is your warranty terms?
A: We offer different warranty time for different components, please contact us for details.
Q: How about your quality control system?
A: Quality is priority. We always attach great importance to quality control from beginning to the end of the production. Every product will be full assembled and careful tested before packing and shipping.
