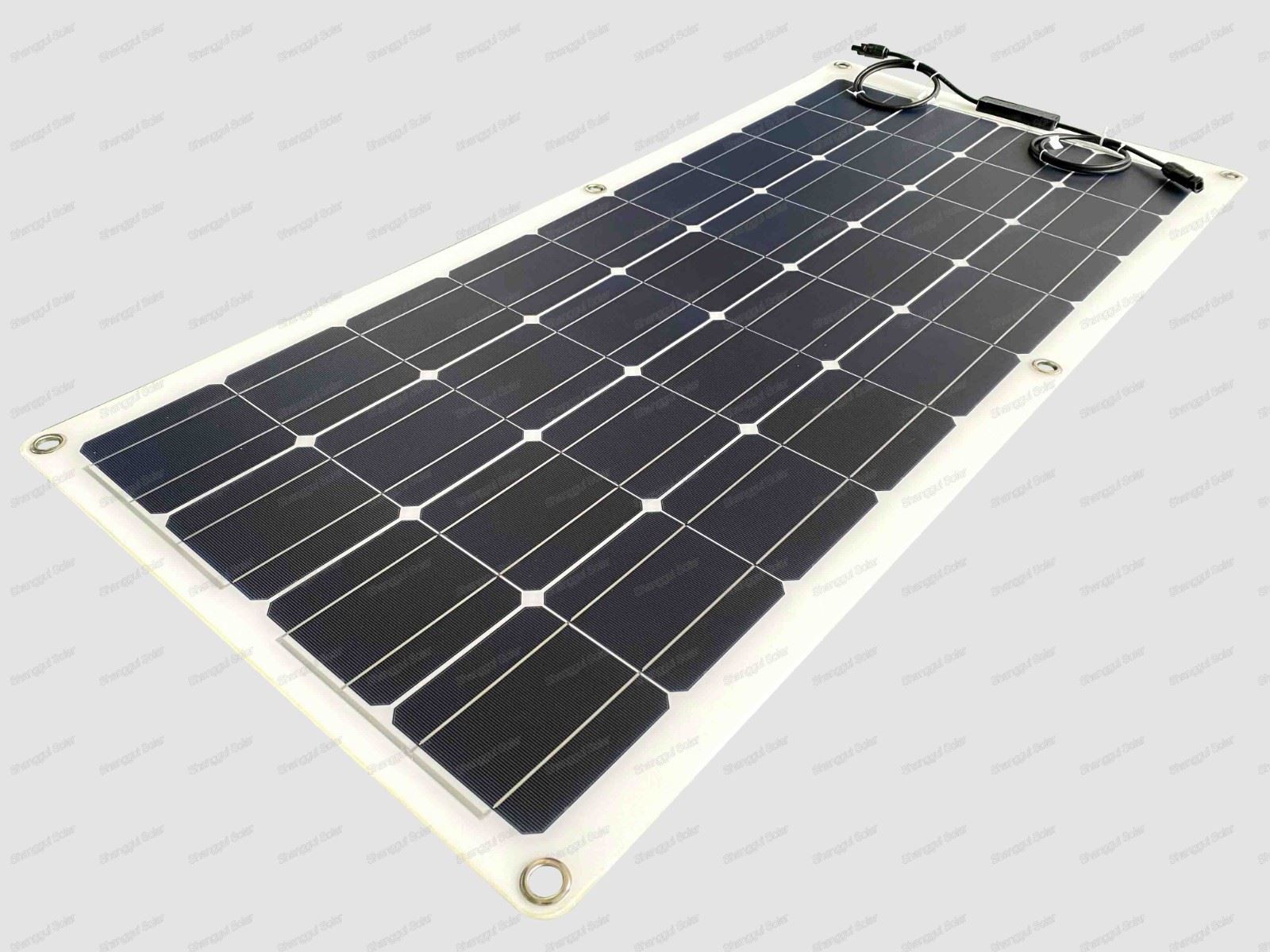

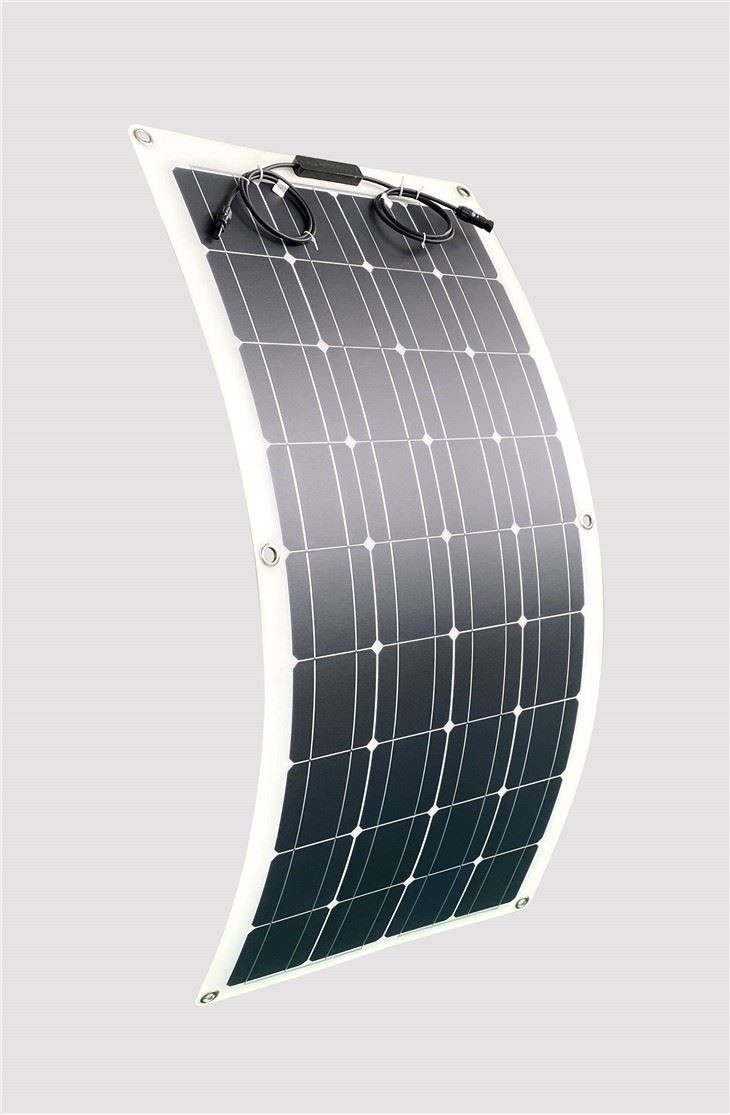

Product Description
ETFE multilayer film:
High light transmission, easy to clean,
Corrosion and aging resistance
Honeycomb pattern design increases the concentration of light, increasing the photoelectric conversion rate by 5%
|
|
|
|
Specification
|
Mechanical Characteristics |
|
|
Solar Cells |
32(4×8)U.S.A SunPower Solar Cell 125×125mm |
|
Encapsulant |
ETFE |
|
Encapsulant |
EVA(Ethylene-Vinyl Acetate) |
|
Encapsulant |
PET |
|
Junction Box |
IP67 rated, with serviceable bypass diodes |
|
Cables |
UV resistant solar cable 4 mm2 (Optional) |
|
Connectors |
MC4 connectors (Optional) |
|
Dimensions(L×W×H) |
1143×540×21mm |
|
Weight |
1.8Kg |
|
Max.Load |
Wind Load:1200Pa/Snow Load:2700Pa |
|
Electrical Characteristics(stc*) |
|||
|
Model No. (SFP) |
100W |
105W |
110W |
|
Maximum Power at STC(Pmax) |
100W |
105W |
110W |
|
Maximum Power Voltage(Vmp) |
19.20V |
19.52V |
19.82V |
|
Maximum Power Current(Imp) |
5.21A |
5.38A |
5.55A |
|
Open Circult Voltage(Voc) |
23.04V |
23.42V |
23.78V |
|
Short Circuit Current(Isc) |
5.68A |
5.86A |
6.05A |
|
Maximum System Voltage(V) |
500V DC(IEC) |
||
|
Maximum Series Fuse Rating(A) |
15A |
||
|
Power Tolerance(%) |
0～+3% |
||
|
NOCT |
45±2℃ |
||
|
Pmax Temperature Coefficient |
-0.46%/℃ |
||
|
Voc Temperature Coefficient |
-0.346%/℃ |
||
|
Isc Temperature Coefficient |
0.065%/℃ |
||
|
Operating Temperature |
-40~+85℃ |
||
|
*STC(Standard Test Condition):Irradiance 1000w/m2,module temperature 25℃,AM1.5 |
|||
|
Best in Class AAA solar simulator(IEC 60904-9)is used,with power measurement uncertainty within ±3% |
|||
