Features
(1) The cell is divided into two, the main grid current is halved, and the current loss of the whole module is reduced to 1/4 of the original, and the output power is about 5-10W higher than the same version of the whole cell module;
(2) The hot spot temperature of the half-cell battery module is about 25℃ lower than the temperature of the same version of the whole battery module, which can effectively reduce the hot spot effect of the module;
(3) The half-cell battery module meets the design requirements of the 1500V system voltage, which can reduce the system-side cost by about 10%;
(4) In case of obstruction and dust and snow accumulation on the lower edge, effectively reduce the loss of power generation caused by obstruction;
(5) Reduce the first year and average light-induced attenuation;
|
|
|
|
|
Parameters
| Electrical Characteristics(stc*) | |
| Model No.(SFM) | 580W |
| Maximum Power at STC(Pmax) | 580W |
| Maximum Power Voltage(Vmp) | 44.8 |
| Maximum Power Current(Imp) | 12.96 |
| Open Circuit Voltage(Voc) | 53.6 |
| Short Circuit Current(Isc) | 13.7 |
| Maximum System Voltage(V) | 1500V DC(IEC) |
| Maximum Series Fuse Rating(A) | 25A |
| Power Tolerance(%) | 0～+3% |
| NOCT | 45±2℃ |
| Pmax Temperature Coefficient | -0.46%/℃ |
| Voc Temperature Coefficient | -0.346%/℃ |
| Isc Temperature Coefficient | 0.065%/℃ |
| Operating Temperature | -40~+85℃ |
| *STC(Standard Test Condition):Irradiance 1000w/m2,module temperature 25℃,AM1.5 | |
| Best in Class AAA solar simulator(IEC 60904-9)is used,with power measurement uncertainty within ±3% | |

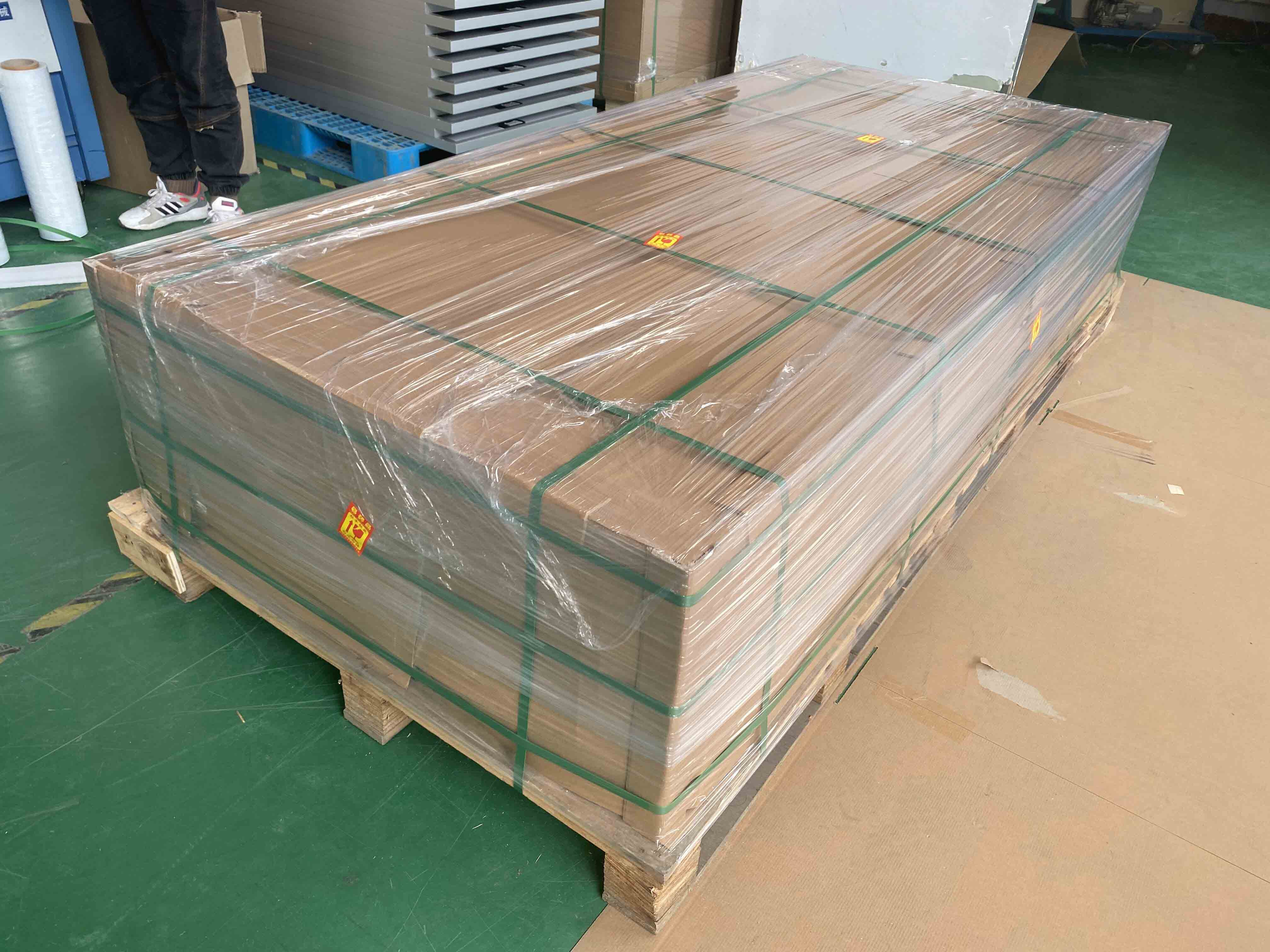

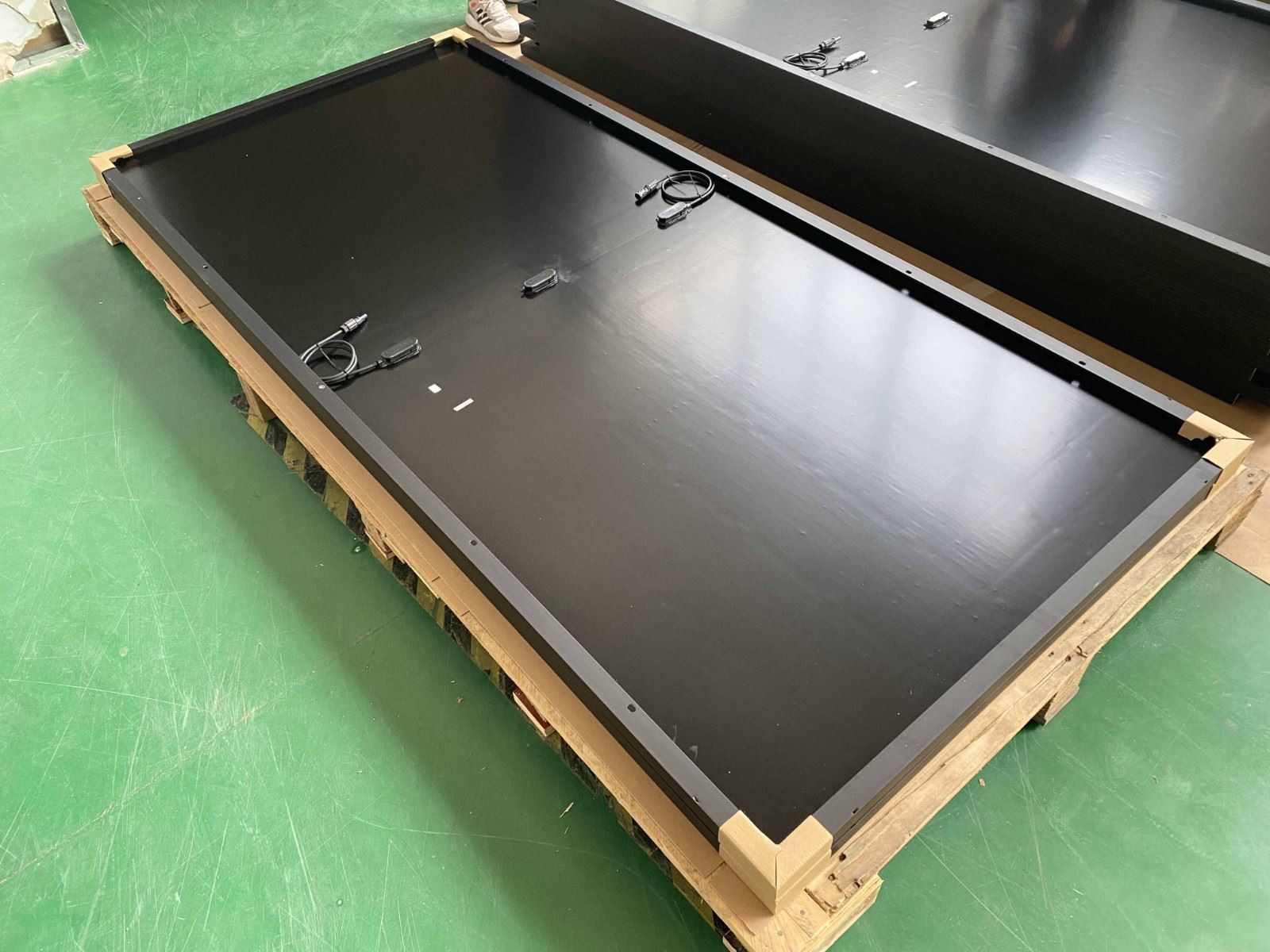

Packaging
|
|
|
