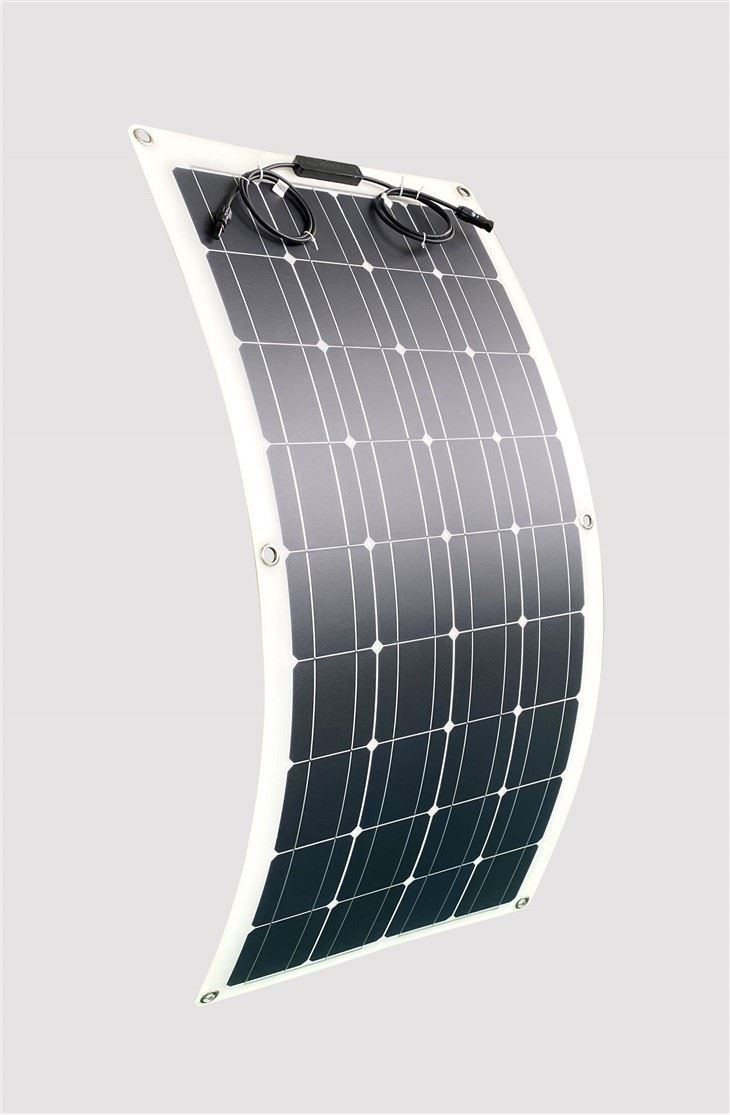

150w Mono Flexible Solar Panel

High temp resistance and little power loss
The surface material resists high temperature Flame
Rigid, thin, light design for widely use
It’s rigid to resist hailstone, semi flexible with bend angle less retardancy UL94 VTM-0. Rugged and insulated bottom reduces area touched surface of yacht, RV, cart etc. Enables air circulation,it cools down panel and get little power loss. 5 degree,suitable for off grid use, marine, yacht, RV roof, ongrid home system,parking lot,portable power generator etc.

Send Inquiry

Download

Parameters

Electrical Characteristics(stc*)
Model No.(SFP)	100W	105W	110W
Maximum Power at STC(Pmax)	100W	105W	110W
Maximum Power Voltage(Vmp)	19.20V	19.52V	19.82V
Maximum Power Current(Imp)	5.21A	5.38A	5.55A
Open Circult Voltage(Voc)	23.04V	23.42V	23.78V
Short Circuit Current(Isc)	5.68A	5.86A	6.05A
Maximum System Voltage(V)	500V DC(IEC)
Maximum Series Fuse Rating(A)	15A
Power Tolerance(%)	0～+3%
NOCT	45±2℃
Pmax Temperature Coefficient	-0.46%/℃
Voc Temperature Coefficient	-0.346%/℃
Isc Temperature Coefficient	0.065%/℃
Operating Temperature	-40~+85℃
*STC(Standard Test Condition):Irradiance 1000w/m2,module temperature 25℃,AM1.5
Best in Class AAA solar simulator(IEC 60904-9)is used,with power measurement uncertainty within ±3%
