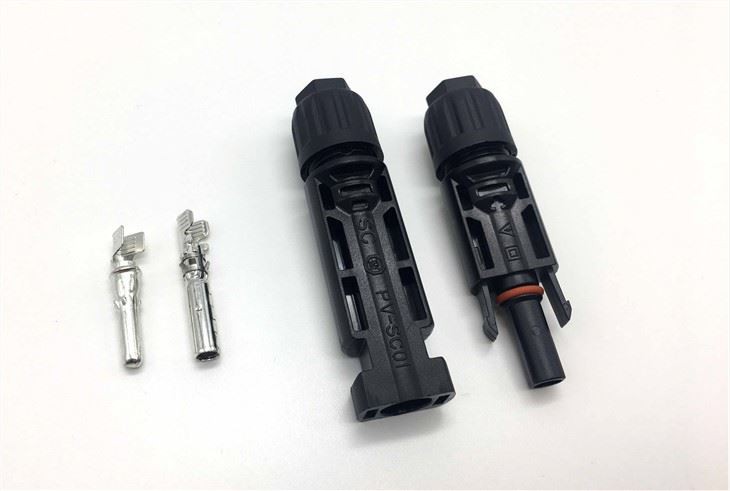

Product Feature
1. Multiple plugging and unplugging cycles.
2. Highly robustness, UV-Resistance.
3. Connector adopts insertion of reed with inner-knob type.
4. Auto-lock equipment for male and female points enable connection easier and reliable.
5. Popular appearance suit most of field installation.
6. Simple on-site operation.
7. Fit for PV cables with different insulation diameters.
8. High current carrying capacity
9.IP67 protection
Parameters
|
Certification |
TUV |
|
Certificate |
No. B 101149 0002 Rev.00 |
|
Standard |
EN62852:2015 |
|
Rated Voltage |
1500VDC |
|
Test Voltage |
6000V(50Hz 1min) |
|
Rated Current |
30A |
|
Protection Class |
Class A |
|
Protection Degree |
IP67 |
|
Flame Class |
UL94-V0 |
|
Overvoltage Category |
III |
|
Pollution Degree |
2 |
|
Temperature Range |
'-40℃~+85℃ |
|
Upper Limiting Temperature |
100℃ |
|
Contact resistance |
≤0.5mΩ |
|
Insulation resistance |
>500MΩ |
|
Insert force |
≤50N |
|
Pullout force |
≥50N |
|
Connecting Cable |
1×4mm 2 |
|
Waterproofing structure |
O-ring Seal |
|
|
|
|
|
|

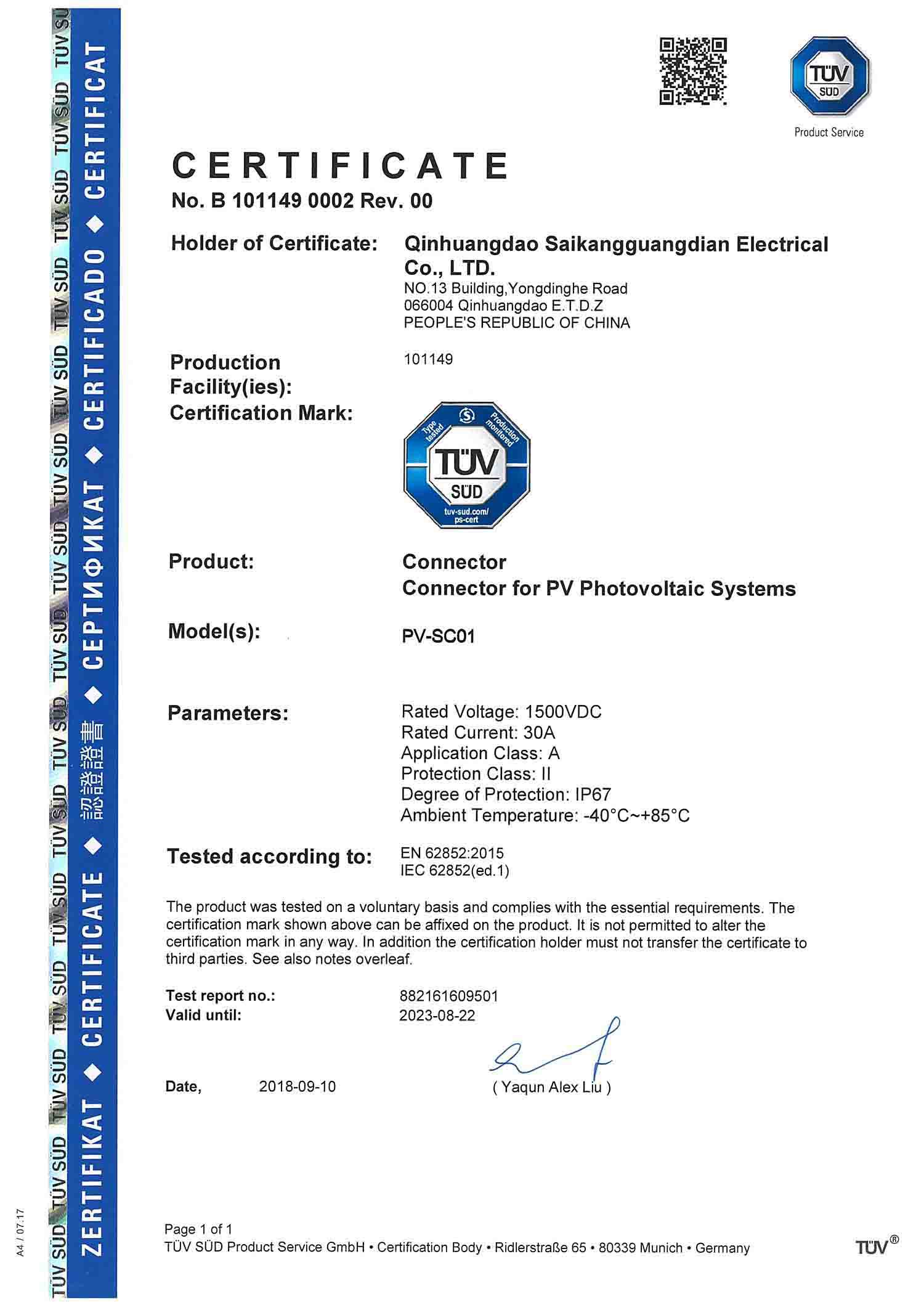

Certificate
