Solar Dc Connectors

Solar Dc Connectors

These connectors are solely compatible with MC4 connectors and come with one male and one female connector. Use these MC4 Branch Connectors to make tight, waterproof connections.

Product Description



Certification

TUV

Certificate

No. B 101149 0002 Rev.00

Standard

EN62852:2015

Rated Voltage

1500VDC

Test Voltage

6000V(50Hz 1min)

Rated Current

30A

Protection Class

Class A

Protection Degree

IP67

Flame Class

UL94-V0

Overvoltage Category

III

Pollution Degree

2

Temperature Range

-40℃~+85℃

Upper Limiting Temperature

100℃

Contact resistance

≤0.5mΩ

Insulation resistance

>500MΩ

Insert force

≤50N

Pullout force

≥50N

Connecting Cable

1×4mm 2

Waterproofing structure

O-ring Seal

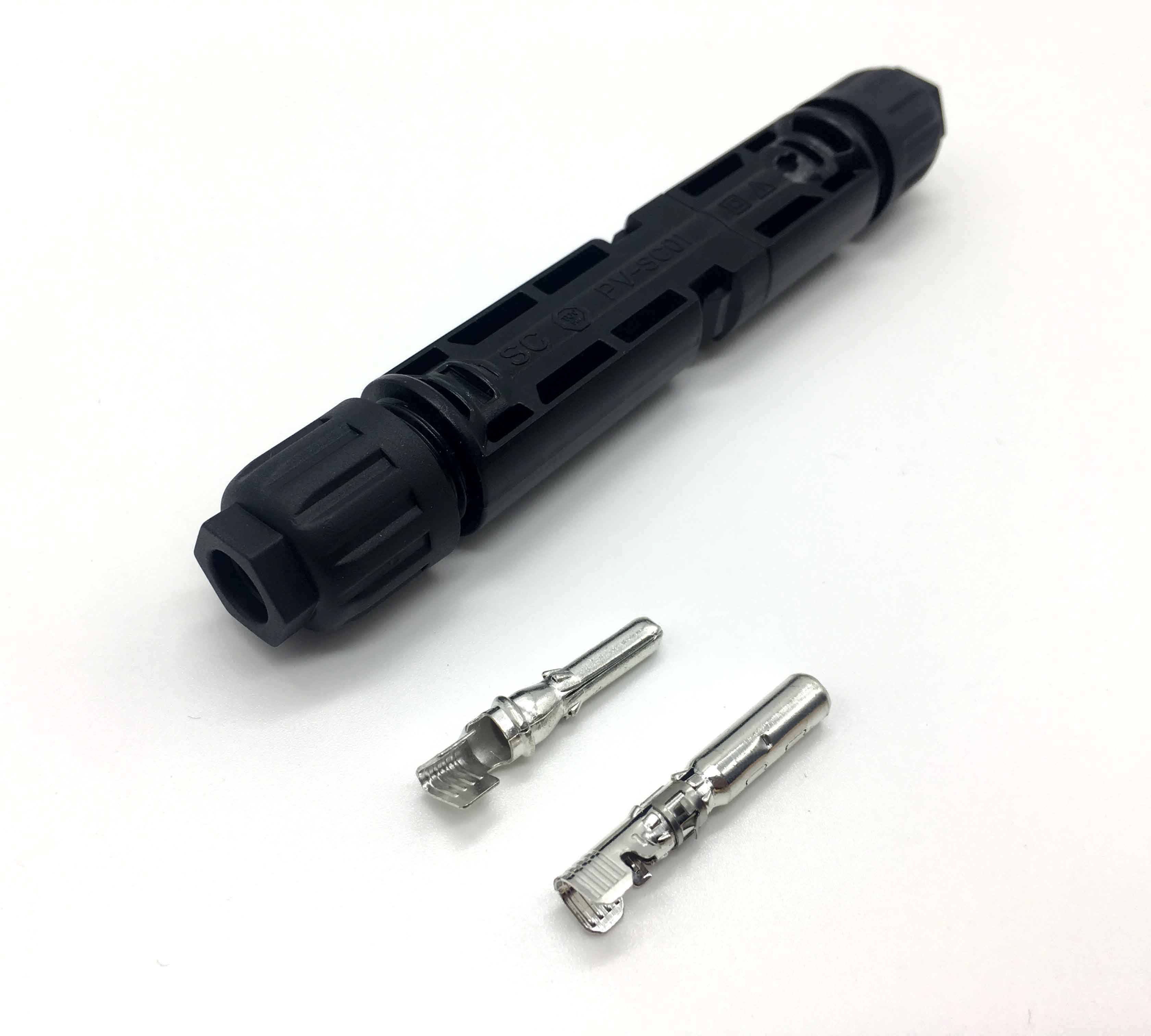

IMG_0771

IMG_0740



Main Features



  • Our Solar dc connectors are high efficient, more benefit;
  • Safely and Successfully servicing more than 20GW Solar Power Station in the world;
  • High temperature,abrasion, flame and blotches resistance;
  • 0.4mm thick tinned phosphor copper sheet terminal;
  • Integrated inner drum type terminal-- self design and patent;
  • Abrasion resistant silicone O type ring;
  • High temperature resistant and insulated silicone;
  • Waterproof plug-- IP67 water proof capacity.



Why choose us?



  • Professional R&D and production experience of solar connector series over 10 years.
  • Servicing more than 20GW photovoltaic power station in the world.
  • Meeting the highest water proof standard IP67.
  • A Leading company in solar industries.

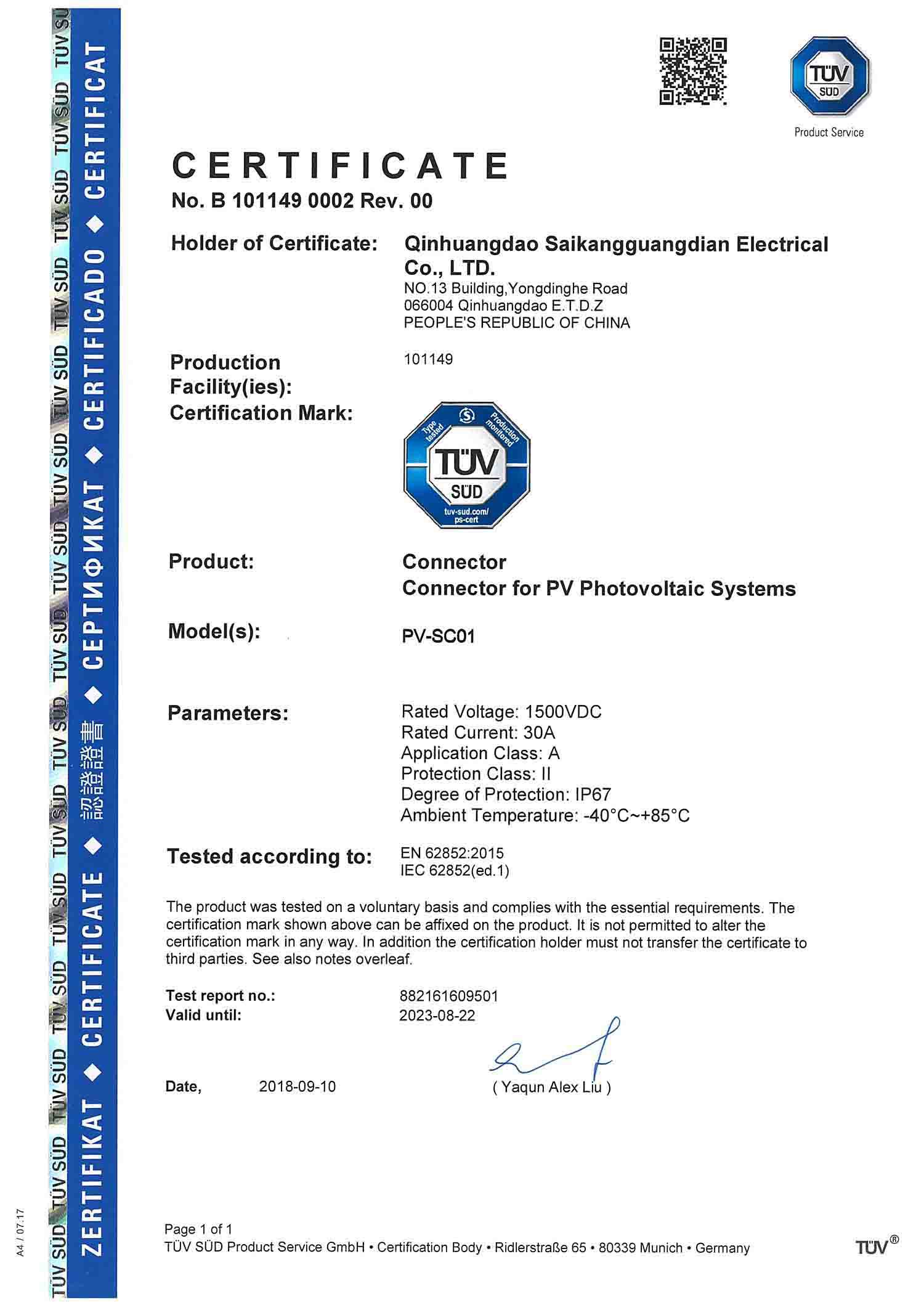

Certificate



PV-SC01 1500v TUV



  •

FAQ





Q: How does your company do regarding Quality Control?

A: 1) We choose high quality for all the raw material.

2) Professional & skillful workers in charge of handling the producing.

3) The QC department is responsible for the quality inspection of each process.



Q: Do you offer OEM Service?

A: We do OEM & ODM, Welcome your order.

If have other questions, Our R&D team will give you the professional suggestions.



Q: What the delivery time?

A: Within 3 days for small order after receiving the payment, but sometimes delivery date will be based on the order quantity.



Q: Do you accept customized order?

A: Yes, we do.
