Product Description
|
|

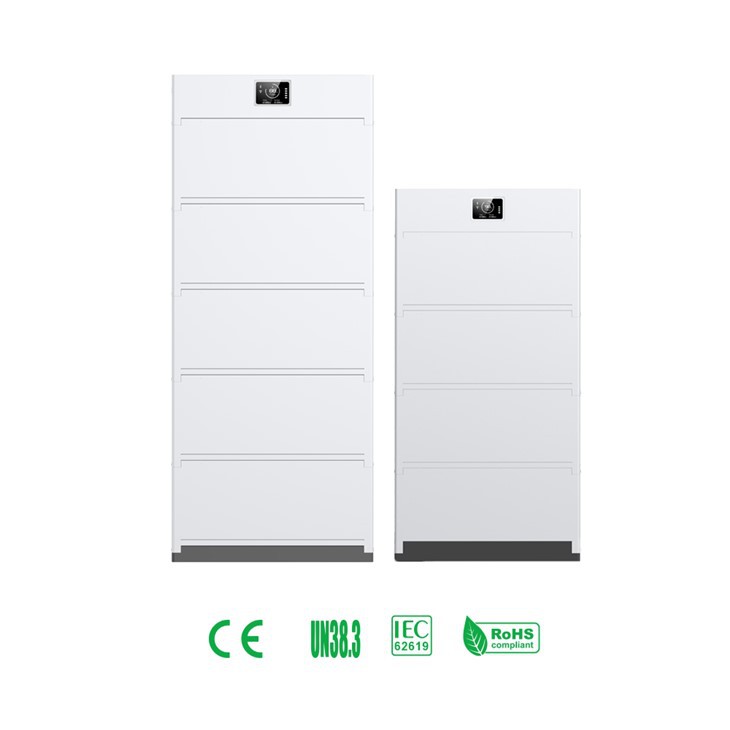

Sufu power storage stacked lithium battery can be connected to solar panels, grid, (or generator), load, and energy storage to use excess solar energy at night, and provide reliable emergency backup power when the grid is interrupted, realizing 24 Hours of uninterrupted power consumption. Also, you can feed extra electricity by connecting to the grid to earn money. When the grid is off, your power will stay on. Your system detects a power outage and automatically charges with sunlight to keep your devices running for days. |
Features
- Scalable from 5 kWh to 211 kWh power configurations.
- Modular design allows convenient installation, saving labor costs. Extendable- modular, adding more capacities as needed.
- Safest LiFePO4 technology, sustained power supply.
- Long lifespan, up to 6000 cycles.
- Armed with top brands BMS, three layers of current protection, and safety first. IP55 protection with residential design, fitting in-and-out-door scenarios. Floor space-sparing, allowing for more space management.
- RS485, CAN communication support.
- Compatible with mainstream brand inverters: Growatt, Deye, Sunsync, Victron, Studer, Aiswei, Voltronic, MEGAREVO, Afore, SRNE.
|
|
||||
| Small Form Factor Sparing Floor Space |
Powerful Energy Supply Trusted & Sustained |
Easy to Install Easy to Transport |
Expend Capacity To Meet Your Needs |
Parallel System 5 kWh ~ 2 11 kWh Capacity |
Technical Parameters
|
|
|||||||
|
Cell Technology |
LiFePO42 |
||||||
|
Battery System Capacity (kWh) |
10.1 |
15.1 |
20.2 |
25.2 |
|||
|
Battery System Voltage (Vdc) |
|
|
48 |
|
|||
|
Battery System Capacity (Ah) |
210 |
315 |
420 |
525 |
|||
|
Battery Controller Model |
|
|
48100 |
|
|||
|
Battery Module Model |
|
|
48100 |
|
|||
|
Battery Module Quantity (pcs) |
2 |
3 |
4 |
5 |
|||
|
Battery Module Capacity (kWh) |
|
|
5.04 |
|
|||
|
Battery Module Voltage (Vdc) |
|
|
48 |
|
|||
|
Battery Module Capacity (Ah) |
|
|
105 |
|
|||
|
Communication |
|
|
CAN, RS485 |
|
|||
|
Cycle Life Cycles |
|
|
6000 |
|
|||
|
Battery System Charge Parameters |
|||||||
|
Battery System Charge Upper-Voltage (Vdc) |
54 |
|
|||||
|
Battery System Charge Current (Amps, Standard) |
42 |
63 |
84 |
105 |
|||
|
Battery System Charge Current (Amps, Normal) |
105 |
157.5 |
200 |
200 |
|||
|
Battery System Charge Current (Amps, Max.) |
200 |
200 |
200 |
200 |
|||
|
Battery System Discharge Parameters |
|||||||
|
Battery System |
Discharge Lower-Voltage (Vdc) |
40.5 |
|
||||
|
Battery System |
Discharge Current (Amps, Standard) |
42 |
63 |
84 |
105 |
||
|
Battery System |
Discharge Current (Amps, Normal) |
105 |
157.5 |
200 |
200 |
||
|
Battery System |
Discharge Current (Amps, Max.) |
200 |
200 |
200 |
200 |
||
|
General Parameters |
|||||||
|
Dimension (W* D* H , mm) 550*310*640 550*310*873 550*310* 1106 550*310* 1339 |
|||||||
|
Weight (kg) |
103 |
148 193 238 |
|||||
|
Protection Class |
|
IP55 |
|||||
|
Cooling Type |
|
Natural Cooling |
|||||
|
Charge Temperature Range ( ℃ ) |
|
0 ~ 45 |
|||||
|
Discharge Temperature Range ( ℃ ) |
|
-10 ~ 50 |
|||||
|
Humidity |
5% |
~ 95% ( without concession) |
|||||
|
Altitude ( M ) |
|
<2000 |
|||||
|
Certificate |
CE, UN38.3 |
||||||
|
Compatible inverters |
|||||||
Why Power Wall?
1. All kinds of new energy power are acceptable, and clean energy is fully used. The output power of solar energy and wind energy can be effectively smoothed. The impact on the power grid and users, which is caused by the intermittency of new energy can be effectively overcome.
2. Providing uninterrupted power to users. It can meet the requirements of users in extreme environments, such as those affected by power failures caused by earthquakes and floods.
3. Saving electricity for users by peak shift. Under the price of peak and valley, if power consumption is significant during rush hour, this system can help save expenditure by storing electricity during troughs and using it during peak times.
FAQ
Q: How to choose the right system and products?
A: Tell us your requirements, then our seller will recommend a suitable product and system to you.
Q: The advantages of home photovoltaic system
A: Solar photovoltaic power generation performance is stable and reliable, with a service life of more than 25 years; Small investment, big income; zero pollution; Low maintenance costs;
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to solve your problem to solve easily. And we have offices in many countries, if you have problems, we can arrange people to help you solve problem.
Q: What about the package?
A: Strict double-layer packaging design, Rigorous vibration testing. Ensure that the product is not damaged during transportation.
The end
With its high energy density, safety features, and versatility, the Power Storage Stacked Lithium Battery is versatile and can be used in a variety of applications, including electric vehicles, solar power systems, and smart homes. It is compatible with a range of devices, making it a great choice for anyone who needs reliable and sustainable power.
