Product Description
1, Long lifetime: Solar Power has a 25-year warranty
2, Sustainable Energy: The sun is an infinite natural source of energy. Unlike fossil fuels, it will never run out.
3, Save your money: After the initial investment has been recovered, the energy from the sun is practically free.
4, Environment friendly: solar energy is clean, renewable(unlike gas, oil and coal), sustainable and helps slow/stop global warming, helping to protect the environment
- Ease of installation
- Cost competitive
- Leading high-efficiency Quasi-Mono technology
- Reliable and stable supply of raw materials
- Microcrack-proof packaging patent
- Multiple internationally recognized certifications
|
|
|
|
|
Specification
|
Electrical Characteristics(stc*) |
|
|
Model No. |
SF60-275P |
|
Maximum Power at STC(Pmax) |
275Wp |
|
Maximum Power Voltage(Vmp) |
30.63V |
|
Maximum Power Current(Imp) |
8.98A |
|
Open Circuit Voltage(Voc) |
36.45V |
|
Short Circuit Current(Isc) |
9.88A |
|
Maximum System Voltage(V) |
1000V DC(IEC) |
|
Maximum Series Fuse Rating(A) |
15A |
|
Power Tolerance(%) |
0～+3% |
|
NOCT |
45±2℃ |
|
Pmax Temperature Coefficient |
-0.46%/℃ |
|
Voc Temperature Coefficient |
-0.346%/℃ |
|
Isc Temperature Coefficient |
0.065%/℃ |
|
Operating Temperature |
-40~+85℃ |
| *STC(Standard Test Condition):Irradiance 1000w/m2,module temperature 25℃,AM1.5 | |
| Best in Class AAA solar simulator(IEC 60904-9)is used,with power measurement uncertainty within ±3% | |
|
Mechanical Characteristics |
|
|
Solar Cells |
60(6×10)Poly-crystalline silicon Solar Cells 156×156mm |
|
Front Glass |
3.2mm(0.13in) high-transmission tempered glass |
|
Encapsulate |
EVA(Ethylene-Vinyl Acetate) |
|
Frame |
Double-layer anodized aluminium alloy |
|

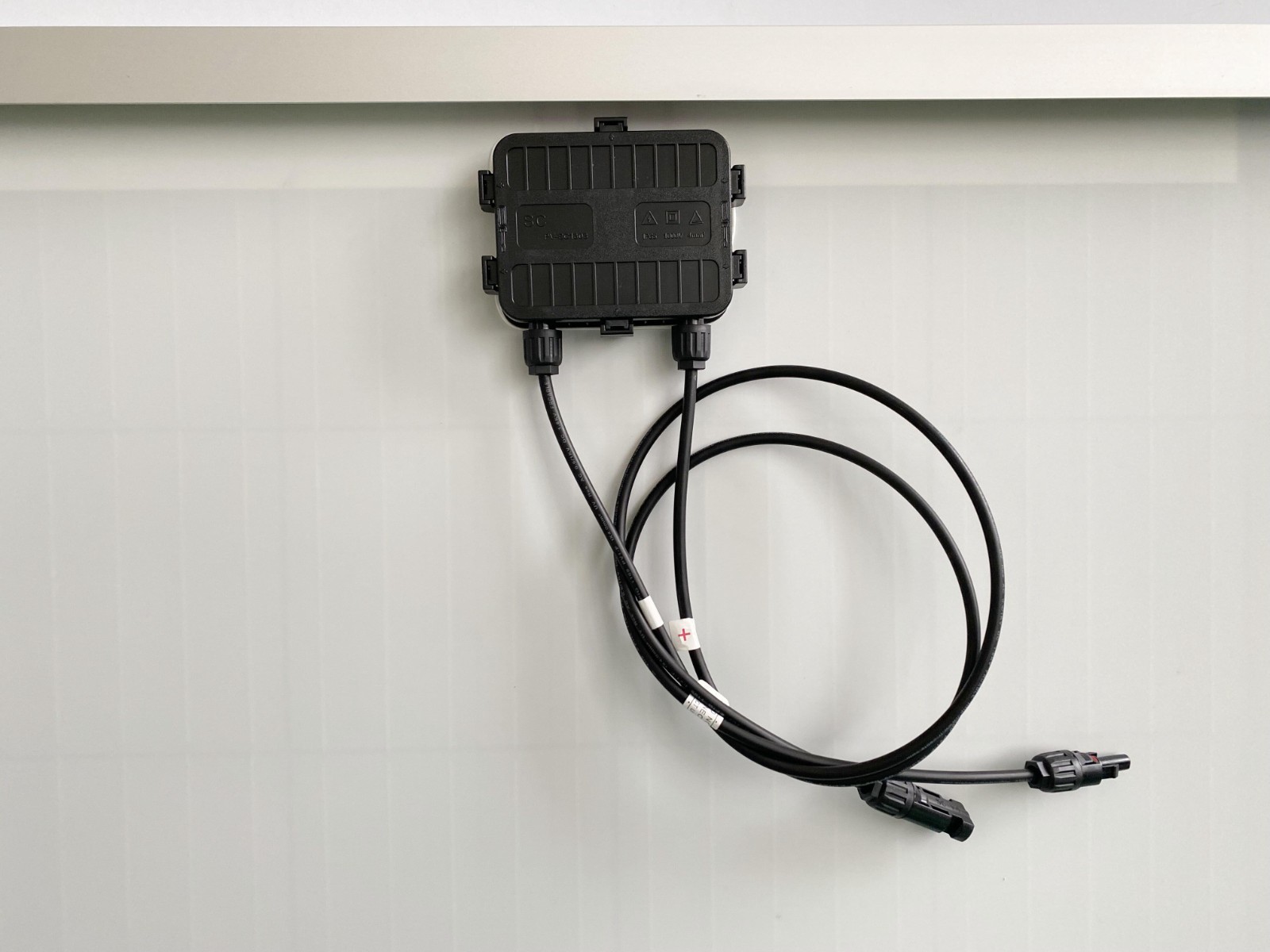

Junction Box |
IP67 rated, with serviceable bypass diodes |
|
Cables |
UV-resistant solar cable (Optional) |
|
Connectors |
MC4 compatible connectors (Optional) |
|
Dimensions(L×W×H) |
1650×990×35mm/1640*992*35mm |
|
Weight |
18Kg |
|
Max.Load |
Wind Load:2400Pa/Snow Load:5400Pa |
|
Packing Configuration |
|
|
Packing Quantity |
30pcs/carton |
|
Quantity/pallet |
60pcs/pallet |
|
Loading Capacity |
840pcs/40ft |
