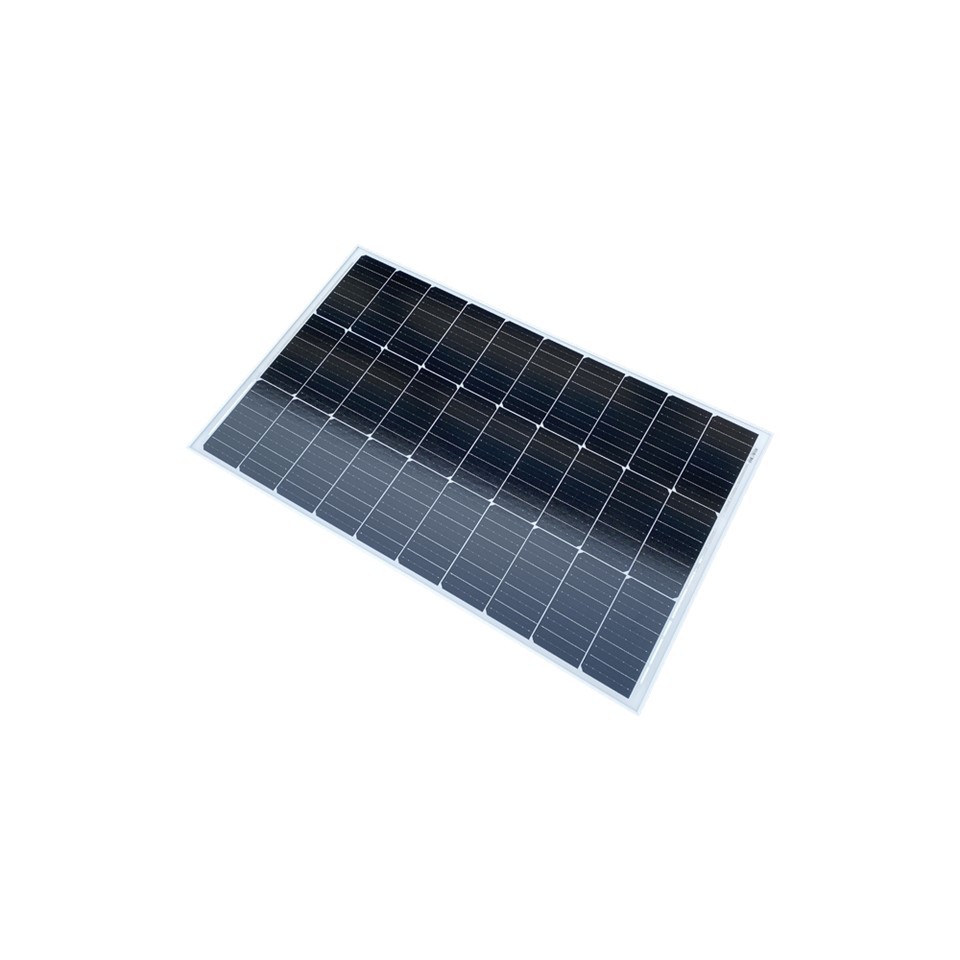

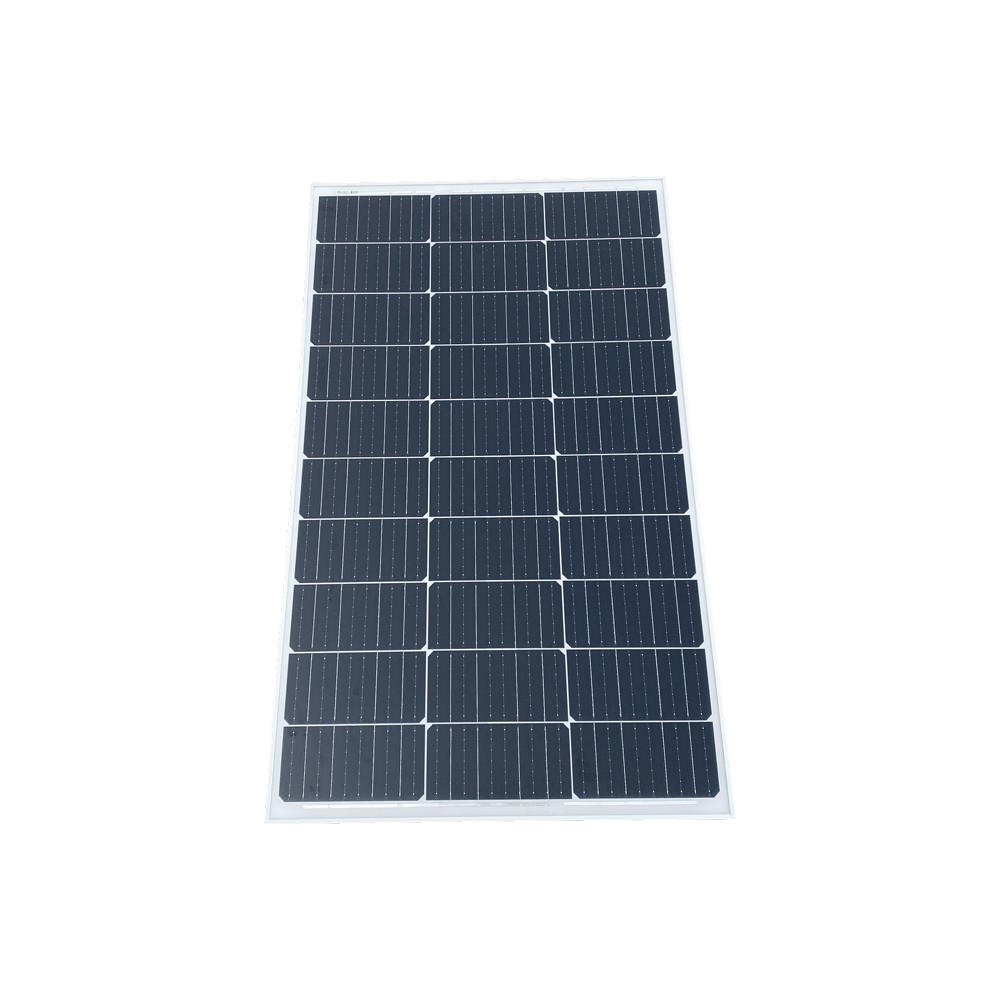

100w mono solar panel
High cell efficiency PV solar panel with quality silicon material for long term output stability and reliability.
Rigorous quality control to meet the highest international standards.
High transmittance, low iron tempered glass with enhanced stiffness and impact resistance.
Unique frame design with high mechanical strength for easy installation.
Advanced encapsulation material with multilayer sheet lamination to provide long-life and enhanced cell performance.
Outstanding electrical performance under high temperature and low irradiance conditions.
36 Back-Contact monocrystalline Si solar cells (approx. 14.98%).
Specification
|
100Wp |
|
|
Maximum Power Voltage(Vmp) |
18.4V |
|
Maximum Power Current(Imp) |
5.43A |
|
Open Circuit Voltage(Voc) |
22.1V |
|
Short Circuit Current(Isc) |
5.87A |
|
Maximum System Voltage(V) |
1000V DC(IEC) |
|
Maximum Series Fuse Rating(A) |
15A |
|
Power Tolerance(%) |
0～+3% |
|
NOCT |
45±2℃ |
|
Pmax Temperature Coefficient |
-0.46%/℃ |
|
Voc Temperature Coefficient |
-0.346%/℃ |
|
Isc Temperature Coefficient |
0.065%/℃ |
|
Operating Temperature |
-40~+85℃ |
|
Mechanical Characteristics |
|
|
Solar Cells |
32(4×8)Mono-crystalline silicon Solar Cells 182×78mm |
|
Front Glass |
3.2mm(0.13in) high-transmission tempered glass |
|
Encapsulate |
EVA(Ethylene-Vinyl Acetate) |
|
Frame |
Double-layer anodized aluminium alloy |
|
Junction Box |
IP67 rated,with serviceable bypass diodes |
|
Cables |
UV resistant solar cable (Optional) |
|
Connectors |
MC4 compatible connectors (Optional) |
|
Dimensions(L×W×H) |
675×766×25mm |
|
Weight |
5.5Kg |
|
Max.Load |
Wind Load:2400Pa/Snow Load:5400Pa |
