Characteristic

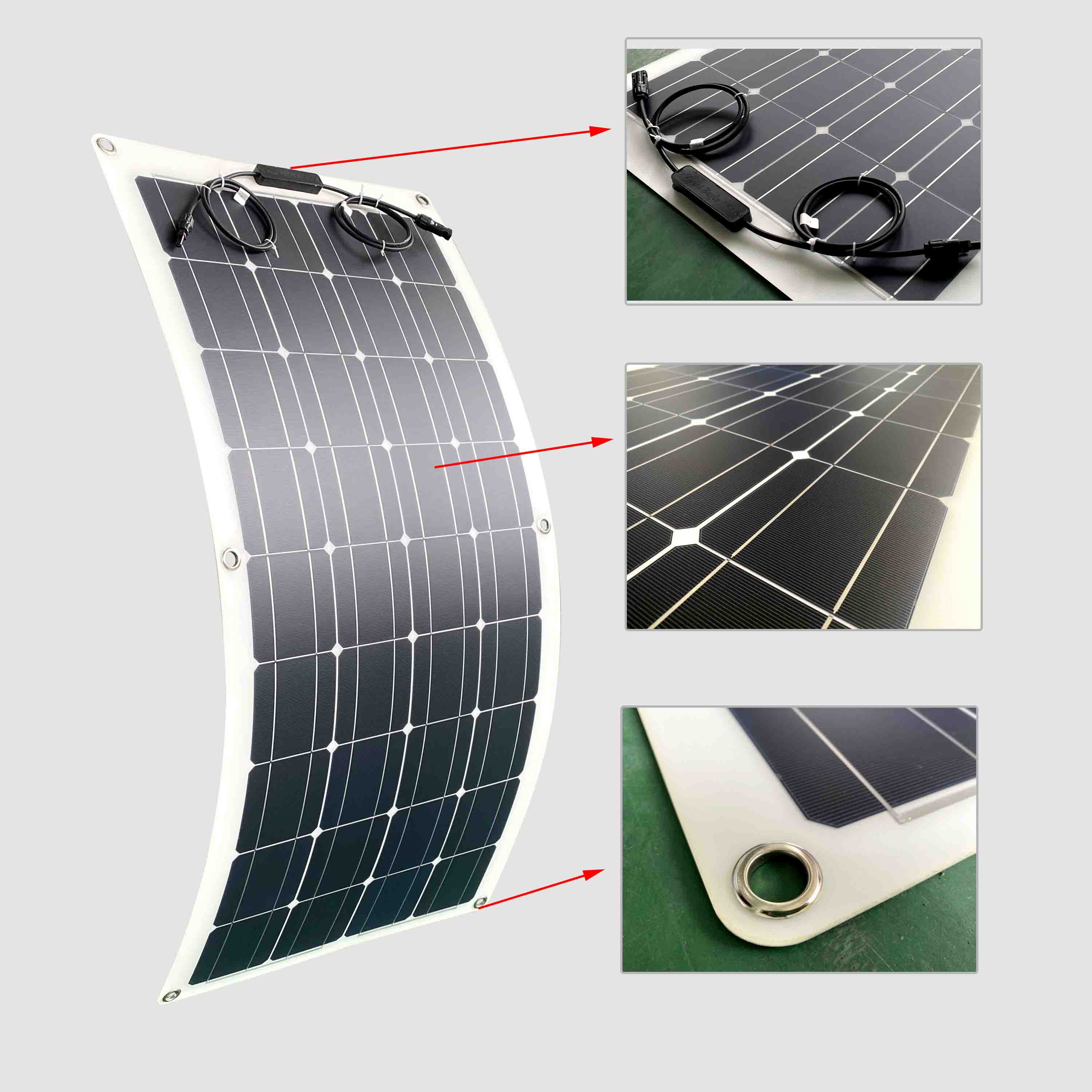

100 watt flexible monocrystalline high efficiency solar panel
1. High-efficiency monocrystalline silicon solar cells are used.
2. Bypass diode to reduce hot spot loss.
3. The surface layer of the module is laminated with a high-transmittance soft film and ETFE, which has a high optical transmittance and reduces the reflection of light, improving the conversion efficiency of photovoltaic modules.
4. The maximum system voltage is greater than 1000VDC.
5. The service life can reach more than 26 years, and the attenuation is less than 20%.
6. It can be used in various complex and harsh climatic conditions and is easy to install.
7. Structural characteristics: Monocrystalline silicon solar cells are connected in series and parallel, and are laminated by soft film, high-performance anti-aging EVA, and TPT composite film with excellent weather resistance, with high light transmittance and mechanical strength.
8. DC junction box: It adopts a sealed, waterproof, high-reliability multi-function junction box. The box is equipped with a bypass diode, and the connection end adopts a special male and female plug that is easy to operate, which is safe, convenient and reliable to use.
Durable and lightweight, flexible solar panels are ideal for small-scale, mobile applications such as RVs, boats, and other energy needs that do not require high power output.
1. The weight is lighter, which is 1/10 of the traditional laminated glass parts.
2. High conversion efficiency, can achieve 23%
3. Thin and thin, only 2mm thick, far smaller than traditional laminated glass parts
4. Parts that can be bent 30°, suitable for arc-shaped slope places.
Specification
| Electrical Characteristics(stc*) | |||
|
Model No.(SFP) |
100W |
105W |
110W |
|
Maximum Power at STC(Pmax) |
100W |
105W |
110W |
|
Maximum Power Voltage(Vmp) |
19.20V |
19.52V |
19.82V |
|
Maximum Power Current(Imp) |
5.21A |
5.38A |
5.55A |
|
Open Circult Voltage(Voc) |
23.04V |
23.42V |
23.78V |
|
Short Circuit Current(Isc) |
5.68A |
5.86A |
6.05A |
|
Maximum System Voltage(V) |
500V DC(IEC) |
||
|
Maximum Series Fuse Rating(A) |
15A |
||
|
Power Tolerance(%) |
0～+3% |
||
|
NOCT |
45±2℃ |
||
|
Pmax Temperature Coefficient |
-0.46%/℃ |
||
|
Voc Temperature Coefficient |
-0.346%/℃ |
||
|
Isc Temperature Coefficient |
0.065%/℃ |
||
|
Operating Temperature |
-40~+85℃ |
||
| *STC(Standard Test Condition):Irradiance 1000w/m2,module temperature 25℃,AM1.5 | |||
| Best in Class AAA solar simulator(IEC 60904-9)is used,with power measurement uncertainty within ±3% | |||
|
|
|
