Product Description
• Simple, quick, safe and effective filed assembly
• Develop independently, innovative design, have independent intellectual property rights, adaptive to solar connector directly
• High mechanical endurance
• High current and voltage carrying: 30A, 1000DC
• Low transition resistance
• Innovative sealed, waterproof, dust resistance design:IP65
• Excellent plastic material, UL 94-V0, wide temperature range:-40°c to 85°c, weather and UV resistant for long-time outdoor application
• Approved by TUV
Parameter
|
Rated Voltage |
1000VDC |
|
Test Voltage |
6000V(50Hz 1min) |
|
Rated Current |
30A |
|
Protection Class |
Class Ⅱ |
|
Protection Degree |
IP65 |
|
Flame Class |
UL94-V0 |
|
Overvoltage Category |
III |
|
Pollution Degree |
2 |
|
Temperature Range |
-40℃~+85℃ |
|
Upper Limiting Temperature |
105℃ |
|
Contact resistance |
≤0.5mΩ |
|
Insulation resistance |
>500MΩ |
|
Insert force |
≤50N |
|
Pullout force |
≥50N |
|
Connecting Cable |
1×4m㎡ |
|
Waterproofing structure |
O-ring Seal |

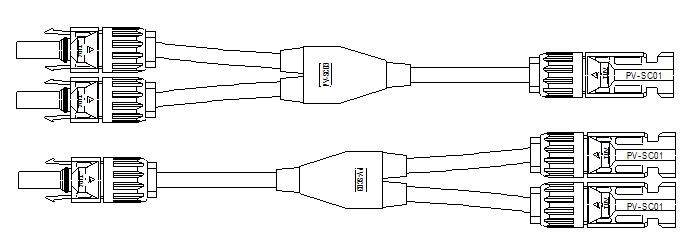

Diagram
Installation
Certificate
FAQ
Q: Why you choose SUFU?
A: Because we are professional manufacturer of solar accessories for more than 11 years. We have excellent raw suppliers and strong engineering team.
Q: What is the deliver time?
A: Within 15 days after order confirmed by prepayment received.
Q: What is your warranty terms?
A: We offer different warranty time for different components, please contact us for details.
Q: How about your quality control system?
A: Quality is priority. We always attach great importance to quality control from beginning to the end of the production. Every product will be full assembled and careful tested before packing and shipping.
