Product Description

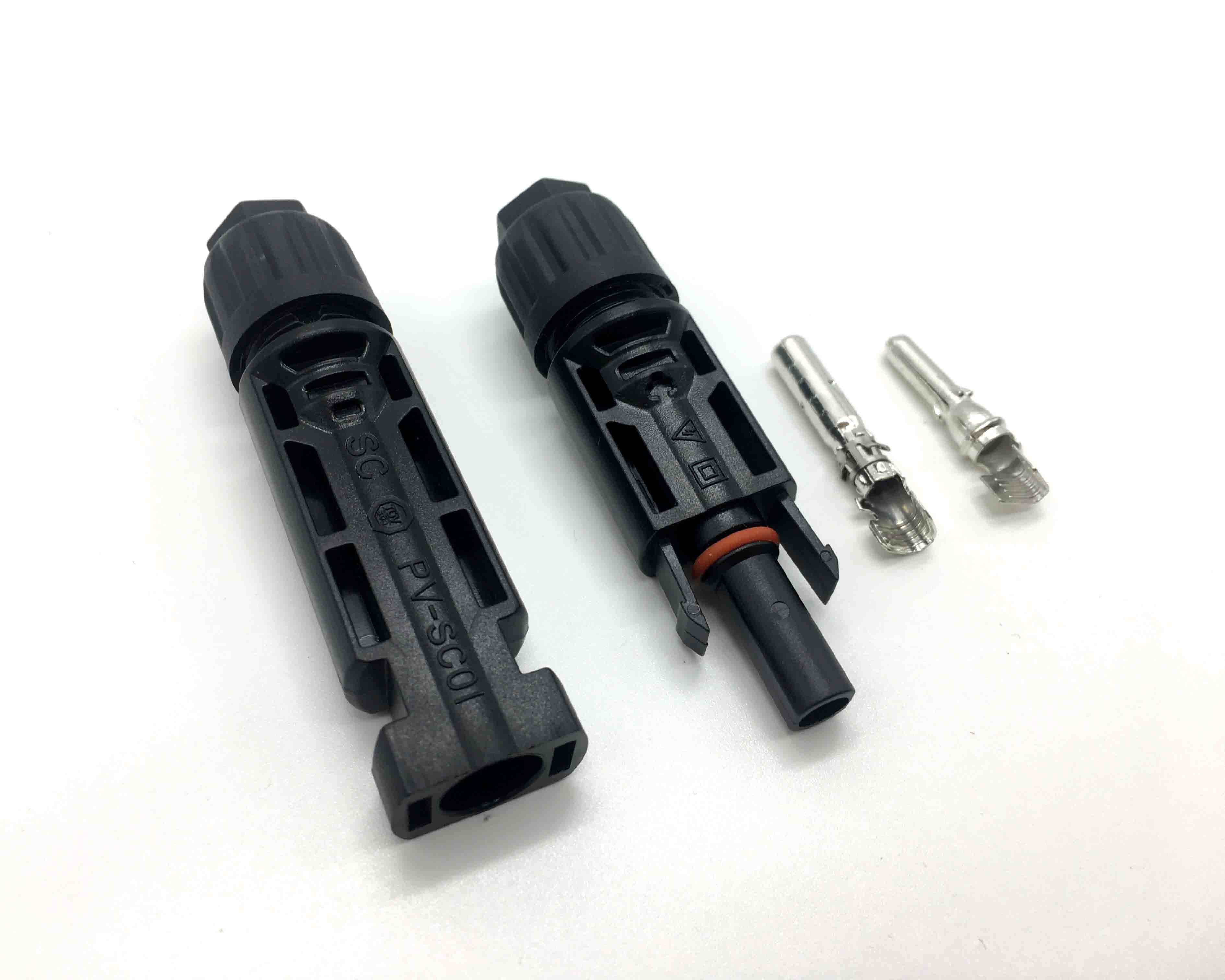

PV-SC01 is a special connector when solar photovoltaic panels are connected in parallel to form an array module. It has the characteristics of fast and reliable connection, waterproof and dustproof, and easy to use. The shell has strong anti-aging and ultraviolet resistance capabilities. Connected with a tight hoop, the male and female heads are fixed with a stable self-locking mechanism and can be opened and closed freely.
- Multiple plugging and unplugging cycles
- Accommodates PV cable with different insulation diameters
- High current carrying capacity
- CE TUV ISO approved
Features
1. Simple assembly, easy to use
2. Suitable for different sizes of PV cable
3. Waterproof grade: IP67
4. Housing made of PPO material, anti-UV
5. High current carrying capacity
6. Contact material: Copper Tin Plated
7. High heat resistance, wear-resisting
Solar Assembly
1. Cable / Wire:
Dual wall insulation.Electron beam cross-linked
Excellent resistance to U.V, oil, greases, oxygen and ozone
Excellent resistance to abrasion
Halogen free, flame retardant, low toxicity
Excellent flexibility and stripping
High current carrying capacity performance
TUV CE ISO approved
2. Connector:
Simple on-site processing
Mating safety provided by keyed housings
Multiple plugging and unplugging cycles
Accommodates PV cable with different insulation diameters
High current carrying capacity
CE TUV ISO approved
Parameters
|
Certification |
TUV |
|
Certificate |
No. B 101149 0002 Rev.00 |
|
Standard |
EN62852:2015 |
|
Rated Voltage |
1500VDC |
|
Test Voltage |
6000V(50Hz 1min) |
|
Rated Current |
30A |
|
Protection Class |
Class A |
|
Protection Degree |
IP67 |
|
Flame Class |
UL94-V0 |
|
Overvoltage Category |
III |
|
Pollution Degree |
2 |
|
Temperature Range |
'-40℃~+85℃ |
|
Upper Limiting Temperature |
100℃ |
|
Contact resistance |
≤0.5mΩ |
|
Insulation resistance |
>500MΩ |
|
Insert force |
≤50N |
|
Pullout force |
≥50N |
|
Connecting Cable |
1×4mm 2 |
|
Waterproofing structure |
O-ring Seal |
Packaging & Delivery
Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Solar connector Shipping:
1. Shipment port:TIANJIN
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
