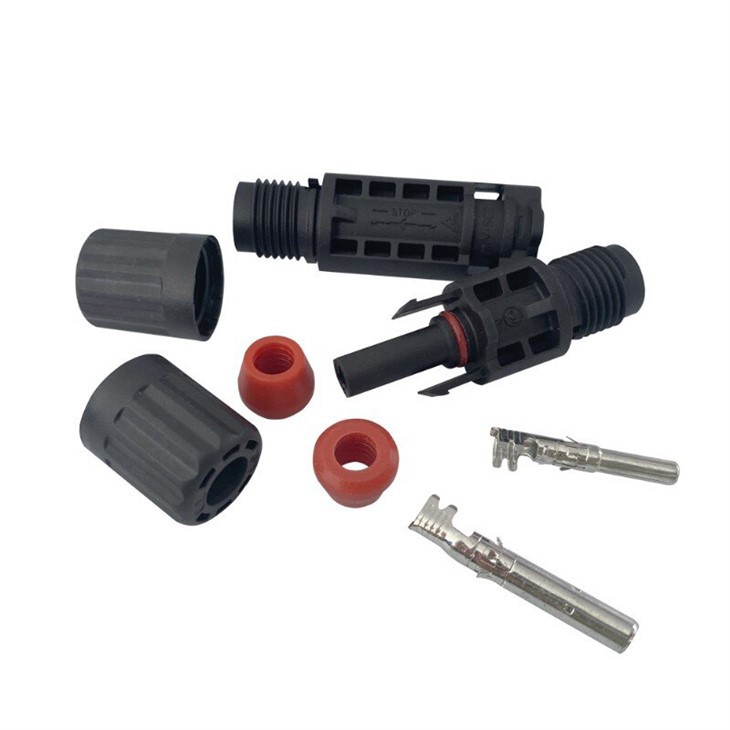

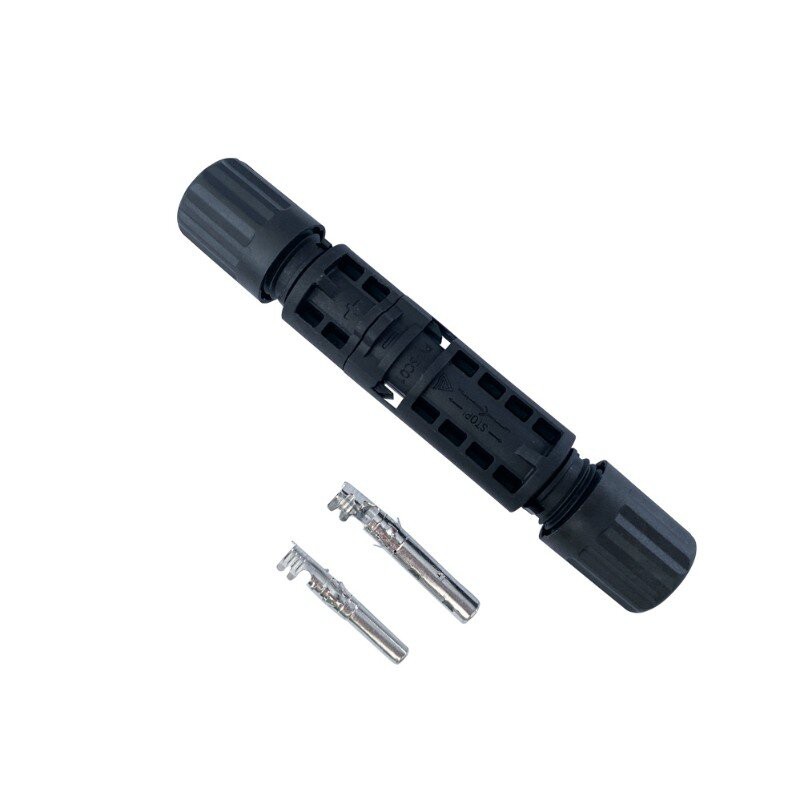

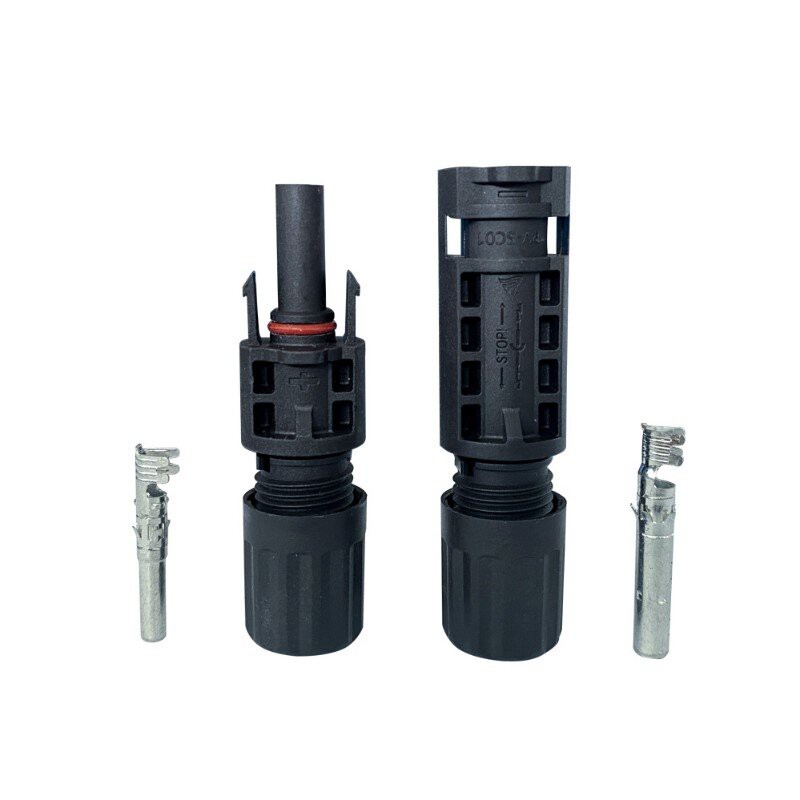

Connectors for solar panels 1500v
1. The solar panel connector shell is made of high-quality PPO flame-retardant material with high fireproof grade, ensuring the stability of use in complex and harsh environments.
2. The solar panel connector adopts high-quality, high-density waterproof ring, which is waterproof and dustproof, and the waterproof grade can reach IP68.
3. The thickened tin-plated copper greatly enhances the conductivity, which helps to prevent ignition when large current passes through, ensuring the stability of current.
|
Insulation material |
Nylon |
|
Conductor material |
Red copper tin plating |
|
Rated voltage |
1500V DC |
|
Rated current |
30A |
|
Contact resistance |
≤0.5mΩ |
|
Tensile resistance |
100N |
|
Safe class |
Class Ⅱ |
|
Temperature range |
﹣40℃ ～ +85℃ |
|
Section area of Cable |
1*4～6mm 2 |
|
Degree of protection |
IP68 |
|
Flame class |
UL94-V0 |
The solar panel connector is beautiful, with a smooth surface and comfortable feel without slipping
