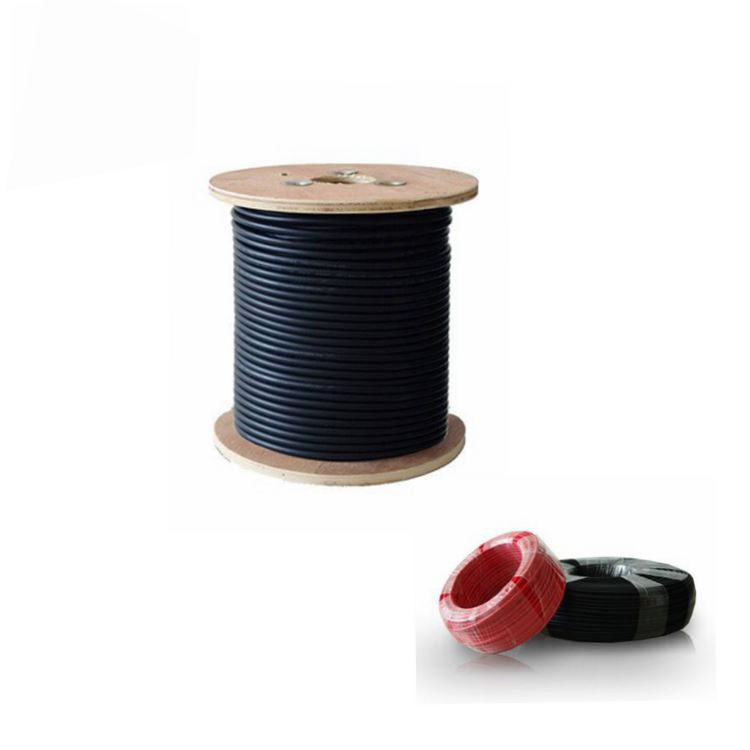

Products Description

PV solar cable and wire is rated 600V,1000V,2000V,is suitable for ac and dc systems.It is rated 90,105,125 or 150°C dry and 90°C wet.

Single conductor, insulated and non-integrally jacketed, sunlight resistant, photovoltaic wire rated for 90°C wet or dry, 600V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 630.31 (And other applicable parts of the National Electric Code (NEC), NFPA 70). Ratings only apply to certain gage sizes.

Product Features

1. Simple assembly, easy to use
2. Suitable for different sizes of PV cable
3. Waterproof grade: IP67
4. Housing made of PPO material, anti-UV
5. High current carrying capacity
6. Contact material: Copper Tin Plated
7. High heat resistance, wear-resisting

Electrical

1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km

2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm

3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.

Cable structure

Conductor	Tinned copper wire 2.5, 4, 6, 10, 16 mm² 2 PV1 - F 18, 16 and 14, 12, 10, 8, 6, 4, 2 mm² PV wire
Insulation	> 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer
Sheath	Low smoke and halogen free material thickness > 0.5mm

Product Advantages

Electron-beam cross-linked compounds;
Excellent resistance to U.V,oil,greases,oxygen and ozone;
Excellent resistance to abrasion;
Halogen free, flame retardant,low toxicity;
Excellent flexibility and stripping performance;
Very long service life > 25 years at 90°C.

Specification

Type	Specification (mm²)	Conductor Construction	Outer Diameter (mm)	Max. Conductor Resistance at 20°C (Q/KM)	Current Carring Capacity
Single core solar pv power cable	1x1.5	30/0.25	4.9	13.3	30
	1x2.5	50/0.25	5.4	7.98	41
	1x4	56/0.3	6.1	4.75	50
	1x6	84/0.3	7.2	3.39	70
	1x10	142/0.3	9	1.95	98
	1x16	228/0.3	10.2	1.24	132
	1x25	361/0.3	12	0.795	176
	1x35	525/0.3	13.8	0.565	218
	1x50	720/0.3	14.8	0.393	280
	1x70	988/0.3	16.9	0.277	350
	1x95	1349/0.3	18.7	0.21	410
	1x120	1691/0.3	20.7	0.164	480
Twin/Dual core round solar pv power cable	2x1.5	30/0.25	8.3	13.3	30
	2x2.5	50/0.25	9.2	7.98	41
	2x4	56/0.3	12	4.75	50
	2x6	84/0.3	13.5	3.39	70
	2x10	142/0.3	17.6	1.95	98
	2x16	228/0.3	19.8	1.24	132
Twin/Dual core flat solar pv power cable	2x2.5	50/0.25	5.4x10.9	7.98	41
	2x4	56/0.3	6.1x12.3	4.75	50
	2x6	84/0.3	7.2x12.9	3.39	70
