Product Description
The SFM170-Watt Mono-crystalline PV Solar Panel uses high efficiency solar cells made from quality silicon material for high module conversion efficiency, long-term output stability and reliability. Virtually maintenance free. High transmittance, low iron tempered glass for durability and enhanced impact resistance.
Made with imported and domestic materials
Black frame with black back sheet
Positive power tolerance (0 to +3%)
Unique frame design with strong mechanical strength for up to 50 lbs. wind load and snow load withstanding and easy installation
Outstanding electrical performance under high temperature and weak light environments
Bypass diodes mitigate shading effects in series strings
Parameter
| Electrical Characteristics(stc*) | |||||||
| Model No.(SFM) |
150W |
155W |
160W |
165W |
170W |
175W |
180W |
|
Maximum Power at STC(Pmax) |
150W |
155W |
160W |
165W |
170W |
175W |
180W |
|
Maximum Power Voltage(Vmp) |
18.02 |
18.10 |
18.20 |
18.41 |
18.56 |
18.78 |
19.01 |
|
Maximum Power Current(Imp) |
8.33 |
8.56 |
8.80 |
8.96 |
9.15 |
9.35 |
9.47 |
|
Open Circuit Voltage(Voc) |
21.62 |
21.72 |
21.84 |
22.09 |
22.27 |
22.54 |
22.62 |
|
Short Circuit Current(Isc) |
9.07 |
9.33 |
9.58 |
9.77 |
9.94 |
10.16 |
10.32 |
|
Maximum System Voltage(V) |
1000V DC(IEC) | ||||||
|
Maximum Series Fuse Rating(A) |
15A | ||||||
|
Power Tolerance(%) |
0～+3% | ||||||
|
NOCT |
45±2℃ | ||||||
|
Pmax Temperature Coefficient |
-0.46%/℃ | ||||||
|
Voc Temperature Coefficient |
-0.346%/℃ | ||||||
|
Isc Temperature Coefficient |
0.065%/℃ | ||||||
|
Operating Temperature |
From -40to+85℃ | ||||||
| *STC(Standard Test Condition):Irradiance 1000w/㎡, module temperature 25℃, AM1.5 | |||||||
| Best in Class AAA solar simulator(IEC 60904-9)is used, with power measurement uncertainty within ±3% | |||||||

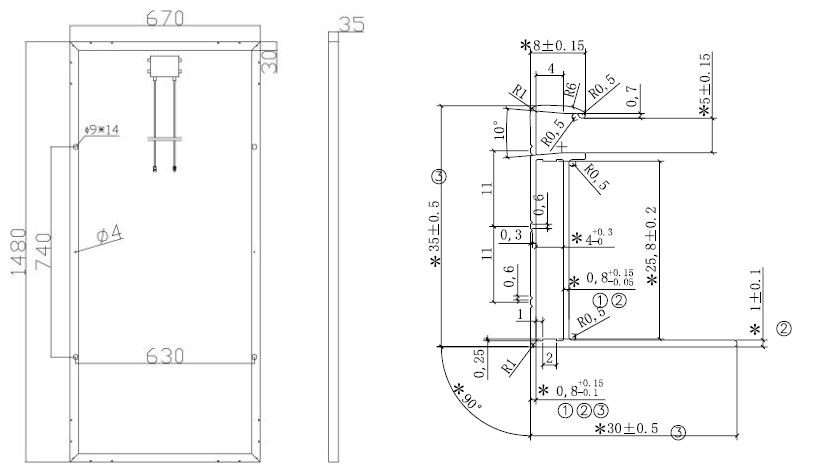

Engineering Drawings (mm)
| Mechanical Characteristics | |
|
Solar Cells |
36(4×9)Mono-crystalline silicon Solar Cells 156×156mm |
|
Front Glass |
3.2mm(0.13in) high-transmission tempered glass |
|
Encapsulate |
EVA(Ethylene-Vinyl Acetate) |
|
Frame |
Double-layer anodized aluminium alloy |
|
Junction Box |
IP67 rated, with serviceable bypass diodes |
|
Cables |
UV resistant solar cable (Optional) |
|
Connectors |
MC4 compatible connectors (Optional) |
|
Dimensions(L×W×H) |
1480×670×35mm |
|
Weight |
12Kg |
|
Max.Load |
Wind Load:2400Pa/Snow Load:5400Pa |
| Packing Configuration | |
|
Packing Quantity |
2pcs/carton |
|
Quantity/pallet |
50pcs/pallet |
|
Loading Capacity |
569pcs/20ft,1180pcs/40ft |
Feature
Anti-reflection glass helps increase the energy absorption, while the upper and lower silver connections have been replaced by black tabs, instead of a extra layer of tape or black tedlar, minimizing the efficiency loss versus the white back sheet equivalent and reducing the risk of cell micro cracks due to lower laminate thickness.
Even at high temperatures, the solar cell can maintain higher efficiency than a conventional crystalline silicon solar cell. This is particularly relevant for "all-black" modules, where heat absorption is greater. The SUFU delivers best-in-class performance when most electricity is generated, in summer. This is particularly relevant in hot climates.Can be used for many different applications, even work sheds, garages, or camps ideal for residential and commercial rooftop systems
Ground mount compatible
Compatible with on-grid and off-grid inverters
Black Solar Panels for residential and commercial applications where a visually pleasing solar panel and maximum efficiency is paramount.
About US
Qinhuangdao Sufu Electronic Co., Ltd is a modern solar module, solar system solutions and service supplier. Our solar products range from solar modules to solar power systems, solar street lights, solar multifunctional chargers, solar pump and photo-voltaic power stations, building attached photo-voltaic(BAPV), building integrated photo-voltaic(BIPV) design and construction.
Covering over workshops of 30, 000㎡, the first phase investment is 20 million RMB, with our annual production capacity of 20MW for both mono and poly solar panels.
Sufu has been offering the world reliable and renewable products which are internationally certified with TUV, CE, IEC and ISO9001, etc.
The product applies to a wide range of clients including Australia, India, Japan, Korea, South America, Middle East, Southeast Asia, Africa and other countries.
Certificate
Why choose us?
1. We have our own factory with professional for solar panel and system over 10 years.
2. We have a strong R&D team.
3. Offering OEM service for your order.
4. Reply within 12 hours.
5. Offering competitive price, good after-sales service.
FAQ
Q: Why you choose SUFU?
A: Because we are professional manufacturer of solar accessories for more than 11 years. We have excellent raw suppliers and strong engineering team.
Q: What is the deliver time?
A: Within 15 days after order confirmed by prepayment received.
Q: What is your warranty terms?
A: We offer different warranty time for different components, please contact us for details.
Q: How about your quality control system?
A: Quality is priority. We always attach great importance to quality control from beginning to the end of the production. Every product will be full assembled and careful tested before packing and shipping.
