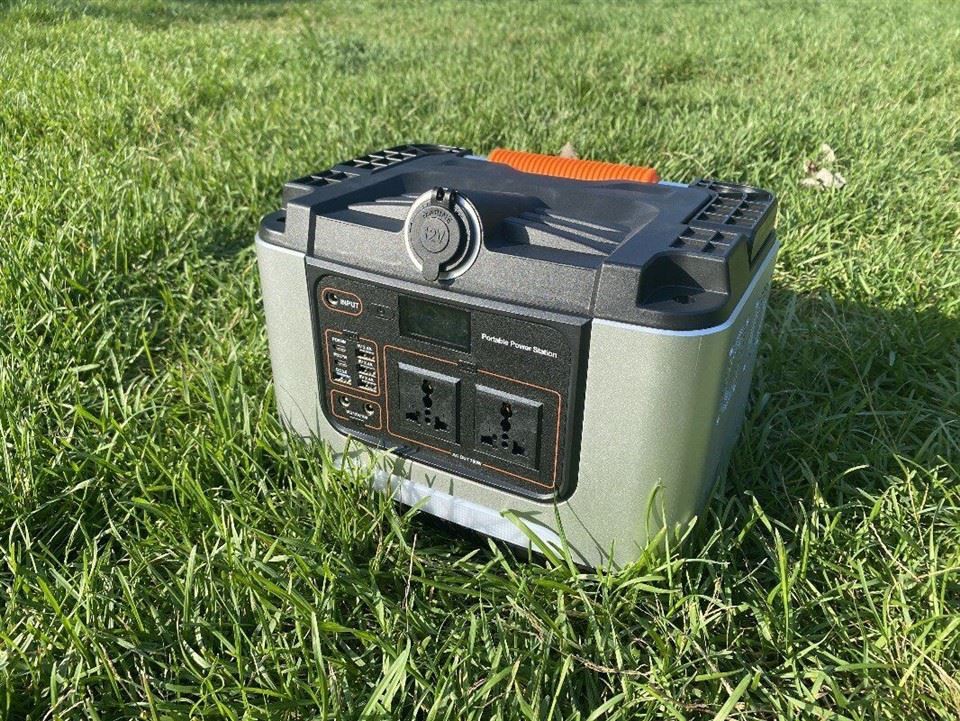

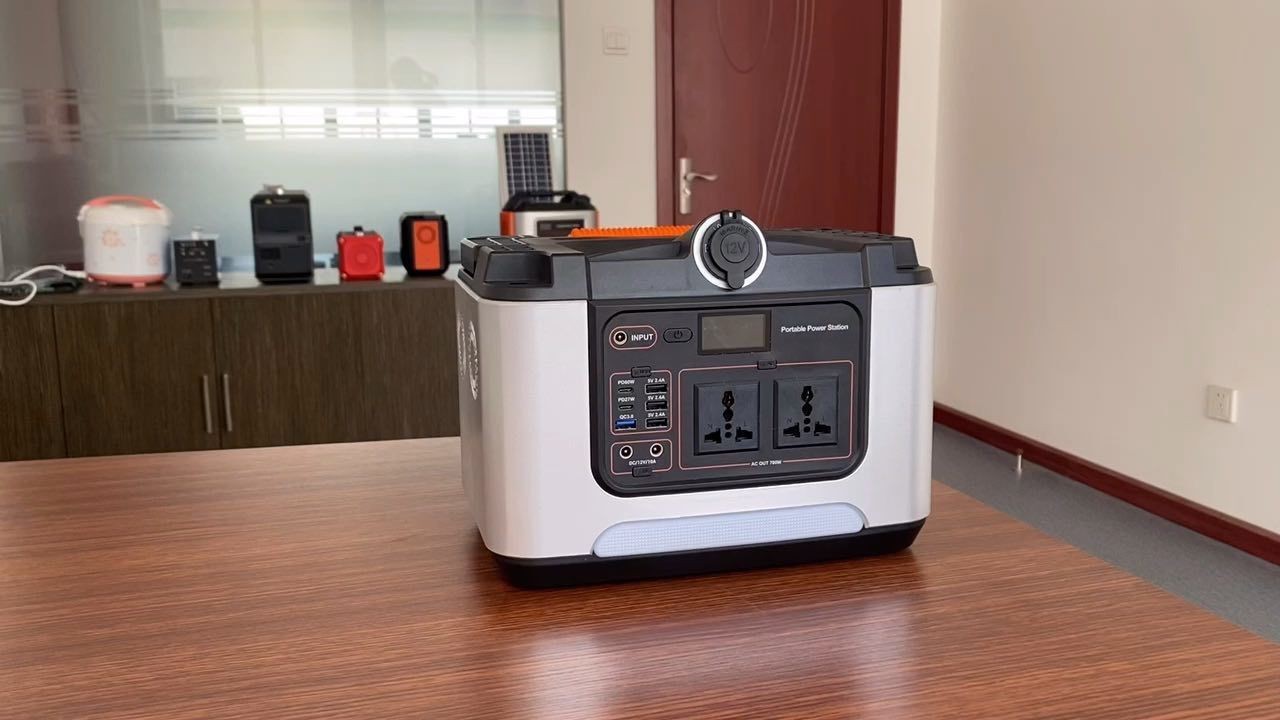

Portable Power Supply 700W Portable Power Station
Multi functional portable energy storage and power supply products. If you encounter a power outage or need to use electricity while traveling, you can use a portable power supply to power appliances or digital products. The portable power supplies support DC output, USB output, and AC output, and can provide power for laptops, small appliances, lighting, and more.
|
|
|
| LED Display | Function Description |
Plug your appliances to the 5.5mm x 2.1mm DC output port, press " " to turn on the power, then press " DC " to switch on DC output. press "DC" again or hold this button " " for 3s to switch off.
Connect the power cable plug of the electrical appliance to the AC outlet of the product, press" " to turn on the power, then press " AC " to switch on AC output. Press " DC " again or hold this button " " for 3s to switch off.
Connect the standard USB cable of digital appliance to the USB outlet of the unit, press " " to turn on the power, then press " USB " again to switch on USB output. Press " USB " again or for 3s to switch off. hold " "for 3s to switch off.
1) Charge through AC Wall Charger
Using the included AC Wall Charger, plug the unit into any wall outlet to charge the unit. You will know the unit is being charged when " lcd display " is blinking. The unit is fully charged when " lcd is blinking. After the unit is fully charged, please remove the AC wall charger in time. The display" stop blinking. After the unit is fully charged, please remove the AC wall charger in time.

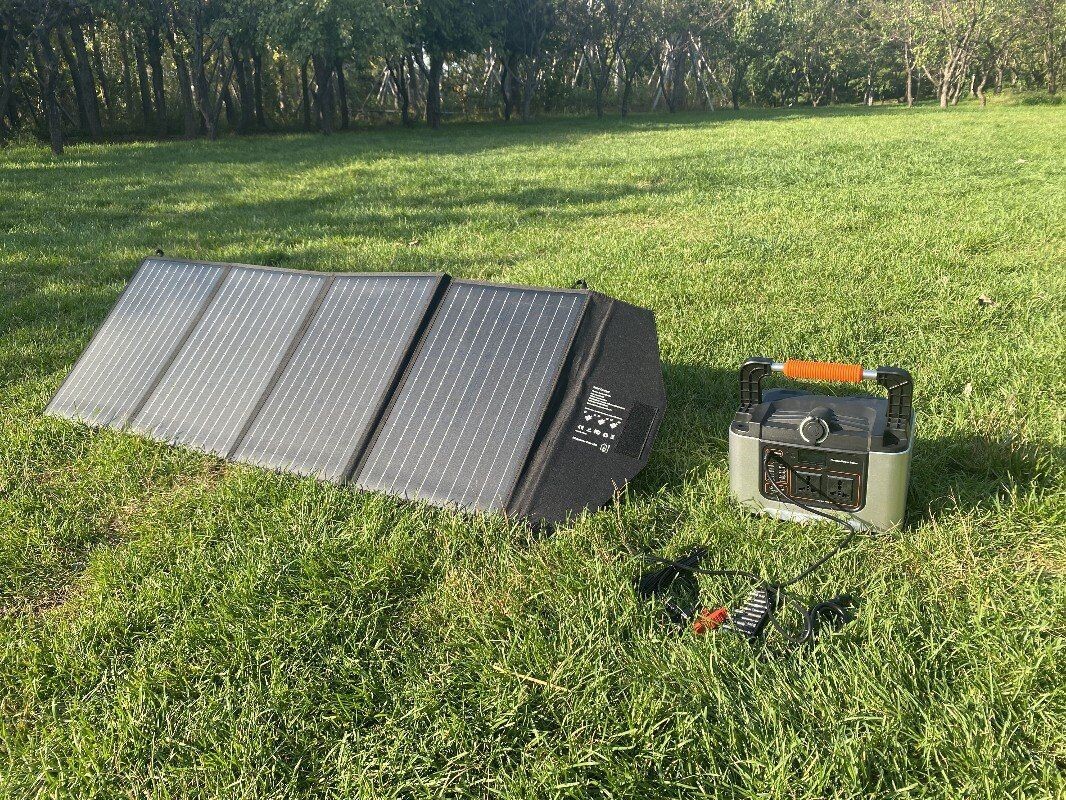

2) Charge from Solar panel ( It is recommended to choose 18V/100W -120W solar panels)
Place your solar panel where it will get as much direct sunlight as possible. Plug the output of the solar panel into the input of the unit to start charging. You will know the unit is being charged when the " lcd display " is blinking. The unit is fully charged when " lcd display " stop blinking.
Specification
| Built-in Battery | High Quality Lithium ion Batteries 648WH,30Ah/21.6V(180000MAH/3.6V) |
Input Charging |
DC 19V/5A Max Power adapter：DC 19V/5A Max |
| Solar Panel Input | MPPT,18V～30V/5A Max 100W/120W/200W |
Fully Charged Time |
DC19V/5A：7～8h |
| USB Output | 3×USB: 5V/3.1A |
| 1×USB QC3.0: 5～12V/2.25A | |
| Type-c 1 PD60W Type-c 2 PD27W |
|
| DC Output | 2×5.5*2.1mm DC 12V/10A Max |
| AC Output | AC SineWave Output 110V/220V±5V, 50Hz/60Hz±3Hz |
| AC Continous Ouput | 700W |
| AC Max Output | 1100W |
| Bulb Type | 1w LED Long bright, SOS, burst flash |
| Operation temperature | -10℃-40℃ |
| Lifecycle | >500 times |
| Certification | CE,FCC,RoHS,PSE,MSDS,UN38.3, |
| MultiSafety Protections | a.Short-circuit protection b.Over-current protection c.Over-voltage protection d.Low-voltage protection e.Over-load Protection f.Over-temperature protection |
