Product Description
SFMZD 80 Watt Foldable Solar Panel Suitcase has MC4 Connectors as its terminal. Solar Panel is lightweight and foldable to a briefcase for its portability. High quality mono solar cell with highest efficiency. Legs are attached in the back of the suitcases, set up in 3-minutes.
Easy setup: with 3 stands/legs in the back to support solar flakes in shape, MC4 connectors allow a click-in and out hook up with AC Power charge controller kit.
Portable: 3.2Kg- lightweight, briefcase design: 3 folding solar panels into compact briefcase.
Voltage from 18-Volt to 23-Volt, single panel to charge 12-Volt system, design for 300 Wh or larger solar generator, expendable solar system, 300 Wh.
Perfect for portable off-grid power needs like RV, boats, cabin, jeep etc.
Parameter
|
Peak power(Pmax) |
80Wp |
|
Working Voltage(Vmp) |
18V |
|
Working current(Imp) |
4.44A |
|
Open circuit voltage(Voc) |
21.0V |
|
Short circuit current(Isc) |
4.89A |
|
Cell |
Mono 156.75 |
|
Operating temperature |
-40℃~+70℃ |
|
Output |
DC5.5*2.1/USB*2 |
|

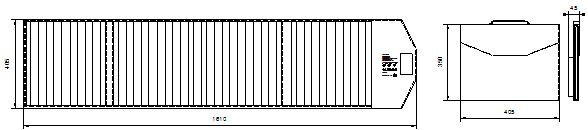

Folded size |
405*350*45mm |
|
Expand size |
1630*405*5mm |
|
Individual packaging size |
425*390*55mm |
|
Net weight |
3.2Kg |
|
Gross weight |
3.5Kg |
|
Carton size |
440*245*410mm |
|
Qty/carton |
4 pcs |
|
Weight per carton |
15.4Kg |
Feature
Made with ETFE laminating technology that's non-reflective and flexible.
Leg supports at adjustable angles increase output current by 80%.
Less aluminum frame makes this lighter than similar solar panels.
It comes with accompanying wiring and a convenient carry bag.
Application

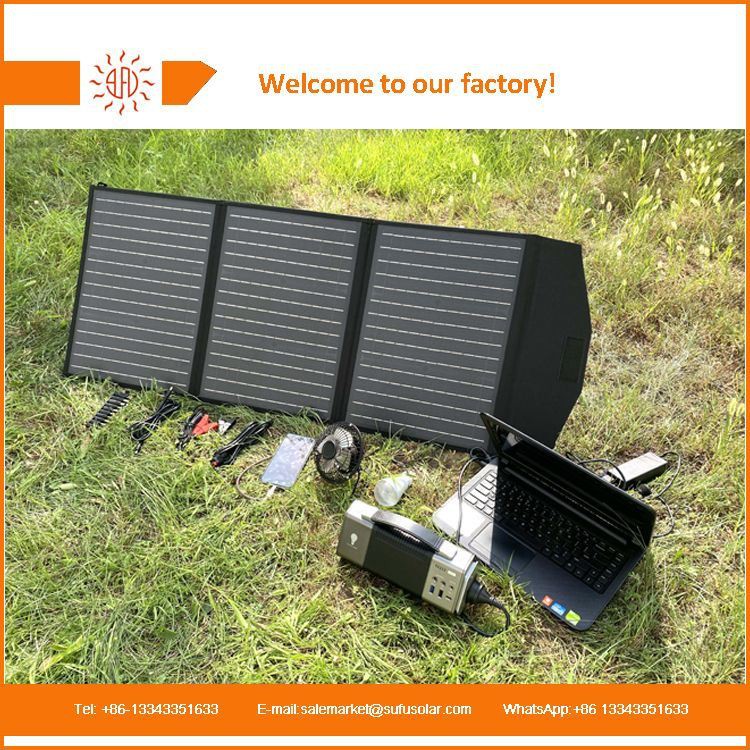

Portable and Folding For Easy Transport
This solar charger is made for adventure, it can be folded into a briefcase for easy transport. You can enjoy solar energy by placing the panel on the outside of your bag, absorbing solar energy while hiking or camping

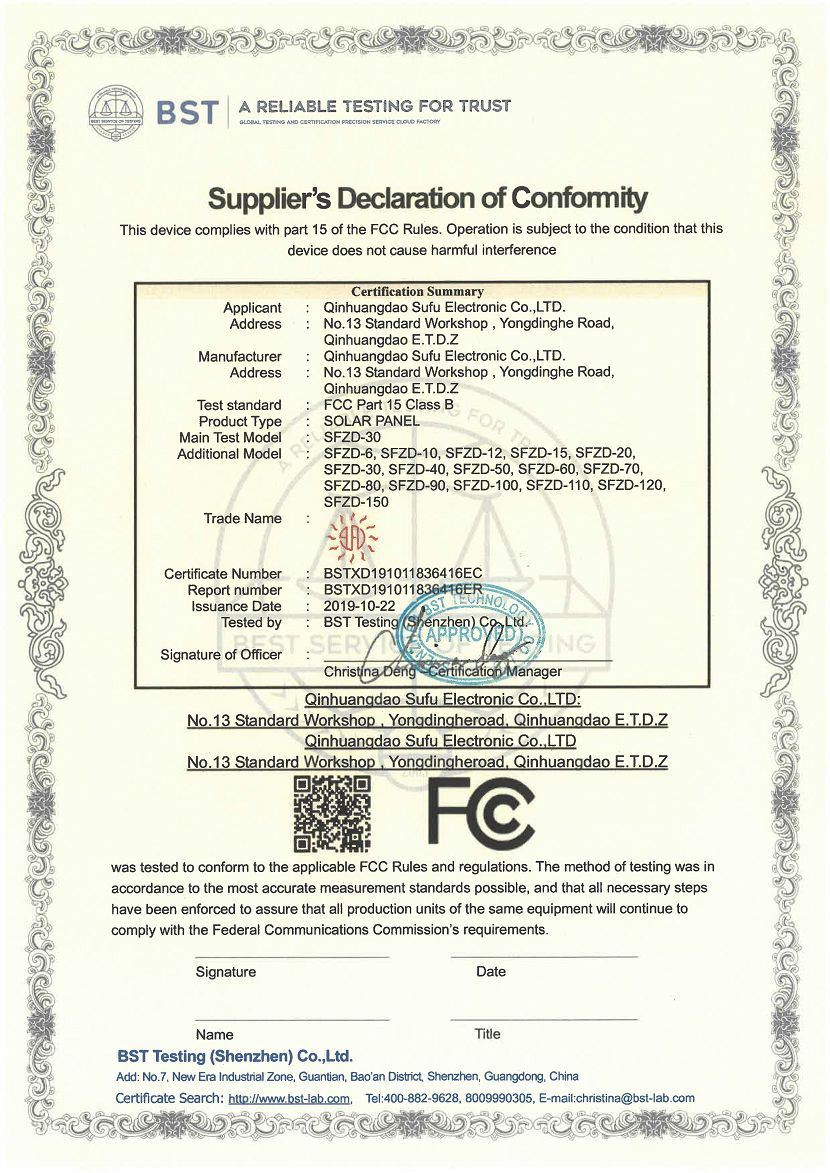

Certificate
