Product Description
Foldable solar panel for charging foldable solar panel 40w
|
|
|
|
|
|
|
|
Specifications
|
Peak power |
40Wp |
USB-A Output |
5V/2.4 A |
|
Working Voltage |
20.7V |
USB-B(QC3.0) Output |
5V/2.4A,9V/2 A,12 V/1.5A |
|
Working current |
1.93A |
DC5.5*2.1 Output |
20.7V |
|
Open circuit voltage |
24.84V |
Folded size |
402*340*35mm |
|
Short circuit current |
2.09A |
Unfolded size |
766*402*5mm |
|
Operating temperature |
-40℃~+70℃ |
Individual packaging size |
420*380*50mm |
|
Processing technology |
Lamination +Sew |
Net weight |
1.8Kg |
|
Surface material |
PET/ETFE |
Gross weight |
2.1Kg |
|
Output Port |
DC5.5*2.1+USB |
Outer packaging |
Customize |
Structure Diagram
|
|
|
|
|
Foldable Solar Panel
Foldable Solar Panel Operation Guidance
1. Expand the product, lay it flat on the ground, or open the bracket support, and try to make the solar panel face the sun;
2. Connect the electronic device to USB port or DC port to start charging.
Foldable Solar Panel Product Features
1. Carefully selected high efficiency mono solar cells for reliable performance.
2. 22% High conversion efficiency solar panel
3. Sewn with high-quality water-repellent Oxford cloth and equipped with pockets for storing accessories, mobile phones, etc.
4. Prevent against reverse charging
5. Protection grade: IPX3

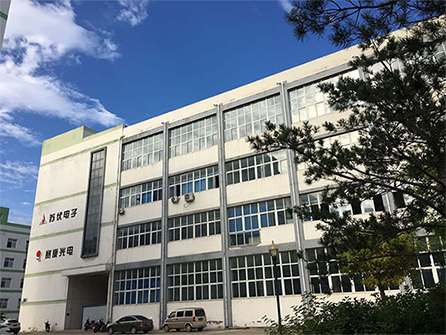

our company
specializes in the R&D and manufacturing of mono, poly solar modules, solar systems, solar street lights, solar chargers, solar water pumps and solar junction boxes,
connectors and other photovoltaic application products, as well as photovoltaic A high-tech enterprise engaged in the integrated design and construction of buildings and photovoltaic buildings.
