| Model | Photo | Specifications |

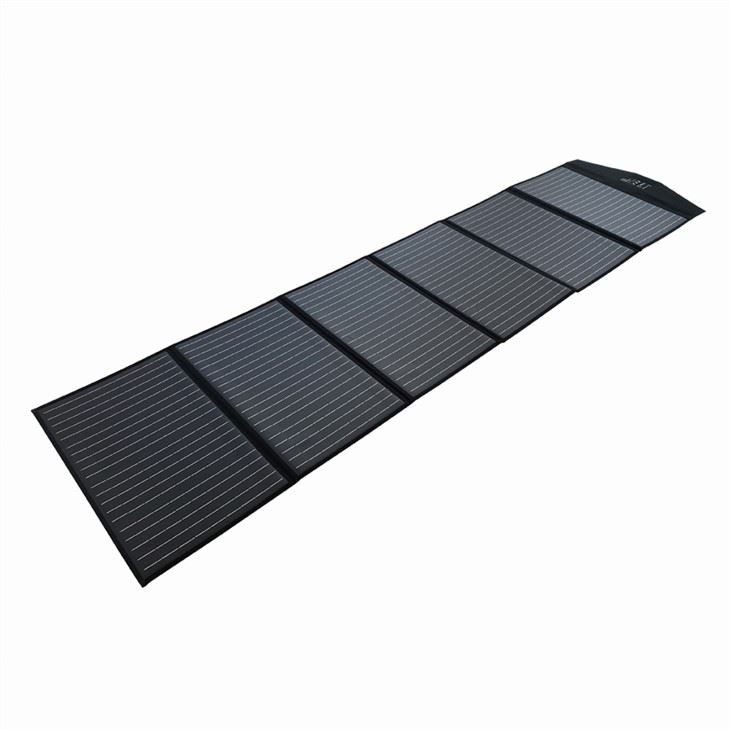

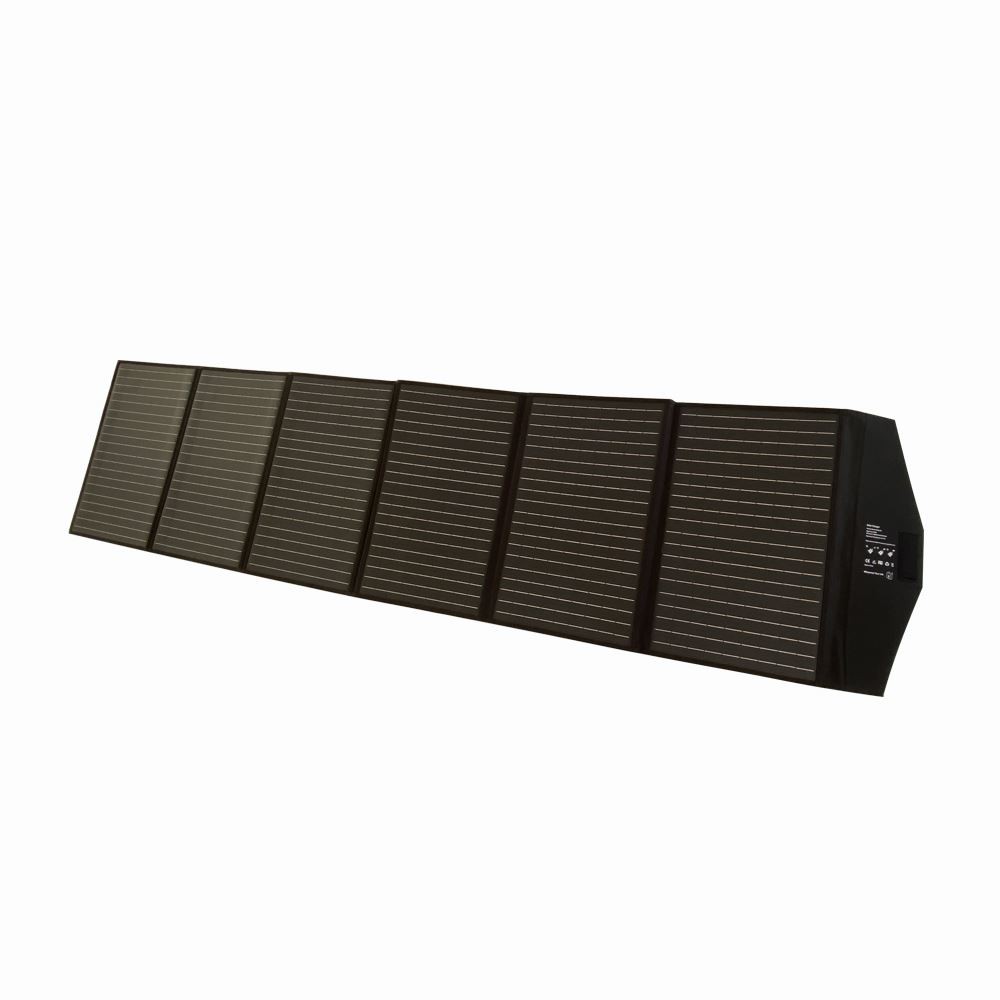

| SFZD-300 |
|
Peak power(Pmax)：300Wp |
| Working Voltage(Vmp)：18V | ||
| Working current(Imp)：16.67A | ||
| Open circuit voltage(Voc)：21.6V | ||
| Short circuit current(Isc)：18.33A | ||
| Cell：Mono 156 | ||
| Operating temperature：-40℃~+70℃ | ||

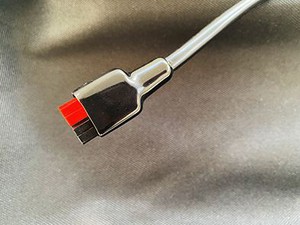

| Output：Cable PV1-F1*4mm2*2 or MC4 | ||

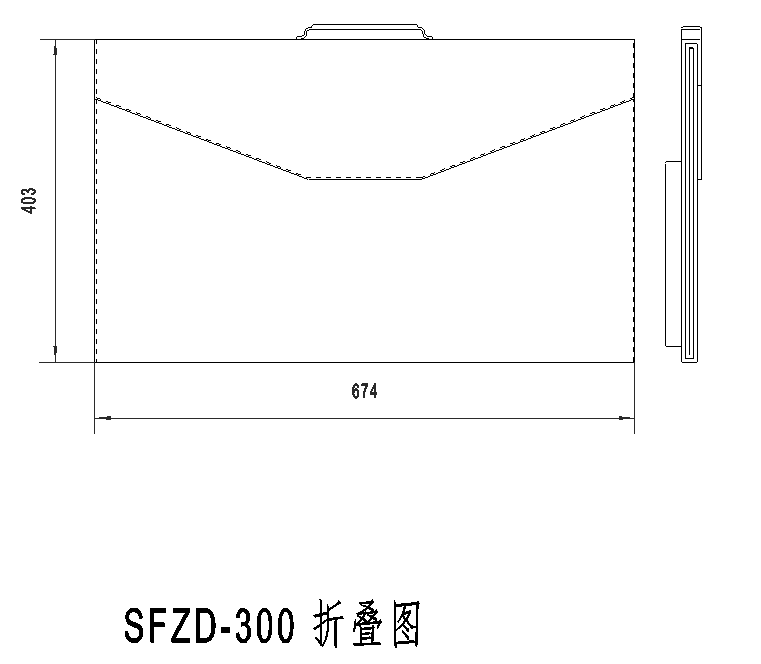

| Folded size：674*403*45mm | ||
| Expand size：2750*674*5mm | ||
| Individual packaging size：700*445*65mm | ||
| Net weight：8.4Kg | ||
| Gross weight：8.7Kg | ||
| Carton size：715*215*465mm | ||
| Qty/carton：3 pcs | ||
| Weight per carton：27.6Kg | ||
| Package Content:Customized output cable,Manual |
Introduction
Foldable solar panel provides clean, renewable and economical electricity supply for your car batterry.
In accompanied with solar generator, household electrical appliances.
Product Features
1. Carefully selected high efficiency mono solar cell solar cells for reliable performance.
2. 22% High Conversion Efficiency solar panel enables to produce electricity in low-lux outdoor environment(>40000 Lux)

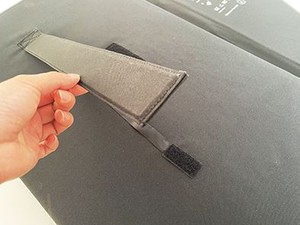

3. The pouch that holds the plates is made with quality polyester fabric, hand-sewed together and comes with an extra compartment to store your cell phone
4. Prevent against reverse charging
5. IP Rating: IPX3
Operation Guidance

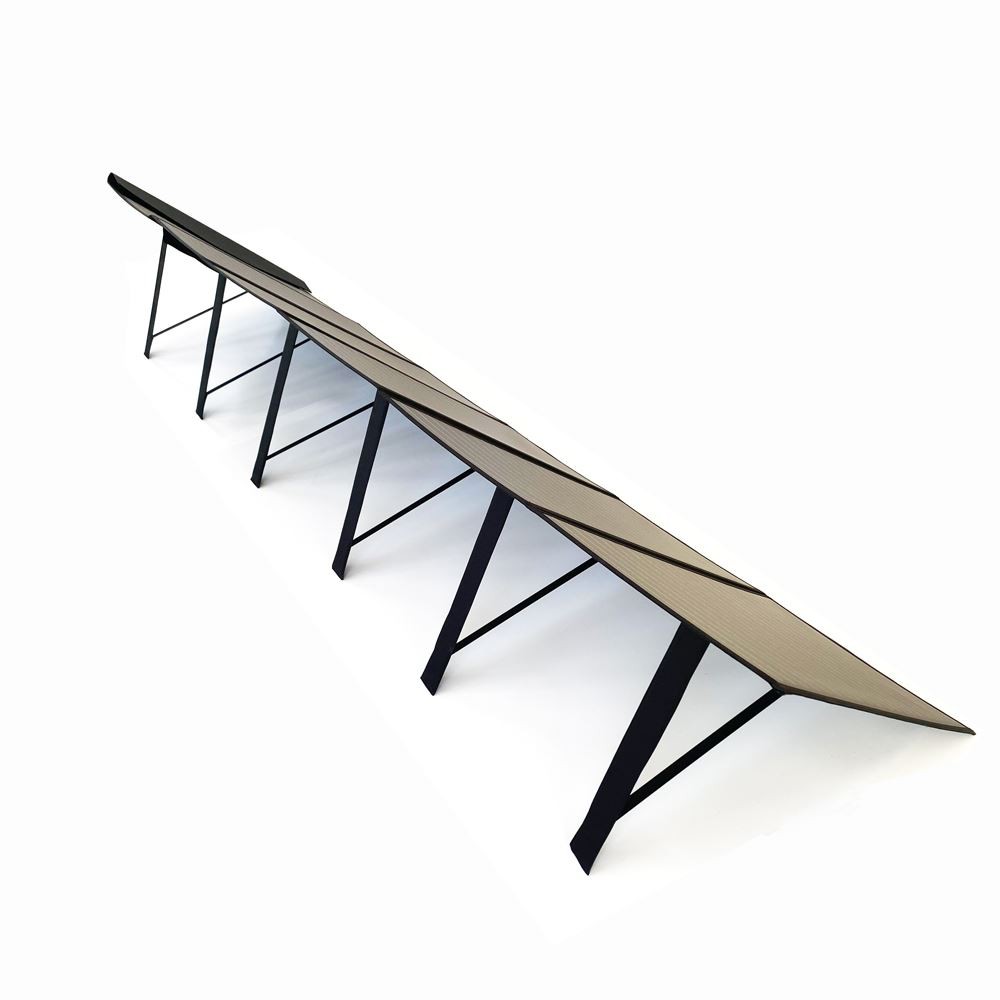

Step1. Unfold the product, lay it flat on the ground, or open the bracket support, and try to make the solar panel face the sun;
Step2. Connect the electronic device to the output port to start charging.
|
|
|
|
|
