5 Fold 250W 182 battery cell interface charge the portable power station rounded corners folding solar panel
The solar folding bag is a new high-tech solar product with intelligent adjustment function. It can adjust different output voltages and currents. It can charge different charging products, such as MP3, MP4, PDA, digital cameras, mobile phones, etc. The solar folding bag is small in size, high in capacity, and long in service life. It is suitable for business trips, tourism, long-distance travel by car and ship, field operations, and students' backup power supply. It has the characteristics of safety protection, good compatibility, large capacity, small in size, and long in service life.
New arrivals
182*182mm Battery Cell
Parameter
| Peak power (Pmax) | 250Wp |
| Operating Voltage(Vmp) | 18.4V |
| Working current (Imp) | 13.59A |
| open circuit voltage (Voc) | 22.1V |
| short circuit current (Isc) | 14.67A |
| Cell | Mono182 |
| temperature range | -40℃~+70℃ |

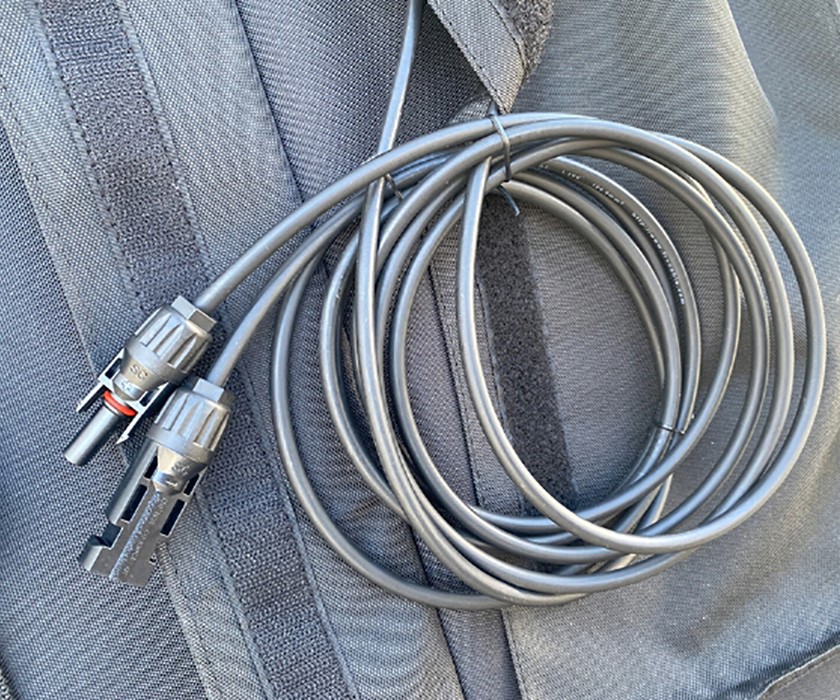

| output | PV1-F1*4mm2cable or MC4 |
| folded size | 772*413*50mm |
| Expand Size | 2292*772*5mm |
| Individual packaging size | 790*450*65mm |
| net weight | 7.5Kg |
| gross weight | 7.8Kg |
| Package size | 810*220*470mm |
| Qty | 3pcs |
| Full box weight | 25kg |
Feature
1. High-efficiency solar cells: using high-quality single-crystal solar cells, the photoelectric conversion rate reaches 23.5%, which can efficiently convert solar energy and provide sufficient power for outdoor activities.
2. Lightweight and portable: ultra-light and thin, easy to carry, suitable for outdoor use.
3. PET film packaging: the surface of the solar panel adopts a new generation of PET lamination technology and deep embossing technology, with a light transmittance of up to 95%, which greatly improves the light absorption effect. The high-quality PET film has waterproof, dustproof, self-cleaning functions, durable and easy to clean, and the service life is at least 8-12 years.
4. High-grade nylon fabric: the surface fabric uses high-grade nylon, which is splash-proof, strong and durable, suitable for outdoor use. Note: splash-resistant (water-resistant), not waterproof (waterproof), cannot be immersed in water.
5. Regulated output: using high-quality junction box, 5V-72V output (peak value under standard light intensity), regulated voltage and current, intelligent restart.
Types of solar folding panels
1. Solar folding bags generally cover between 5W and 300W. They are too large to be produced, and generally do not require such large solar panels for outdoor activities.
2. Solar folding bags can be produced according to customer requirements in terms of size, wattage, different types of solar panels, folding numbers, output interfaces, output lines, etc.
3. Solar folding bags can be designed for customers, with board making services, various LOGO requirements, etc.
4. Solar folding bags can customize circuit boards for customers or provide standard circuit boards such as single USB, dual USB, single USB + DC output regulator or linear output
